shackle wire rope free sample

As one of the most professional grade 80 bolt type chain shackle manufacturers and suppliers in China, we"re featured by good service and competitive price. Please rest assured…

Shackles are used for towing, hoisting, and load bearing applications. Lexco® Cable stocks anchor shackles (or “bow” type) and chain bolt shackles (or “D” type) in galvanized and stainless steel varieties. Alloy materials are also available for applications requiring extremely high workloads. We carry both domestic (Made in the USA) shackles and imported shackles.

Our shackles are available with three common types of pins: screw pins, round pins, and bolt-type or safety pins. Screw pins screw into position, round pins operate similarly to clevis pins, and bolt-type pins feature threading with nuts and cotter pins to ensure secure loads for maximum safety.

Lexco’s galvanized and alloy material shackles comply with US Federal Spec RRC-271D Type IV. Our stainless steel shackles are available in dimensions that comply with this Federal Spec and in non-fed spec dimensions. Stainless steel shackles are type 316 and are available in forged as well as cast construction.

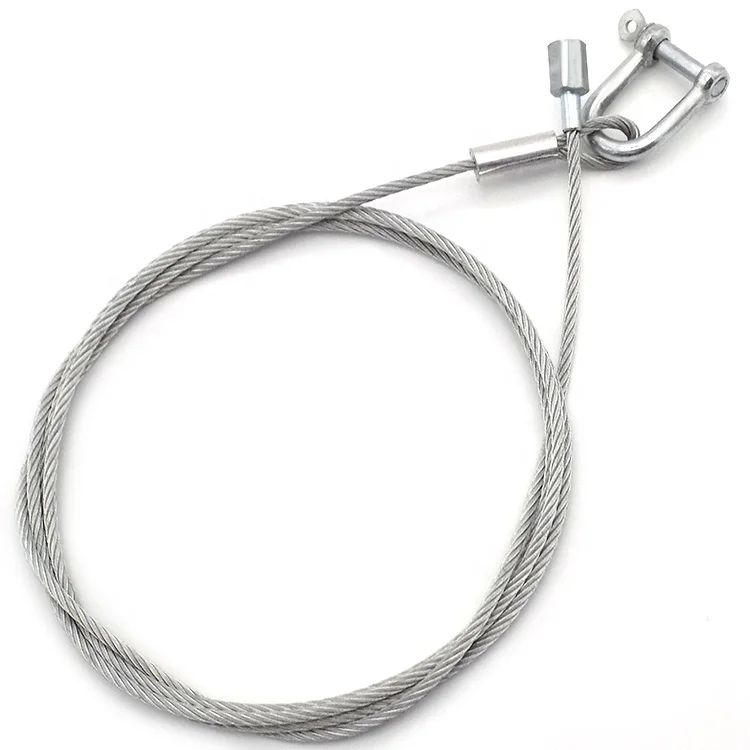

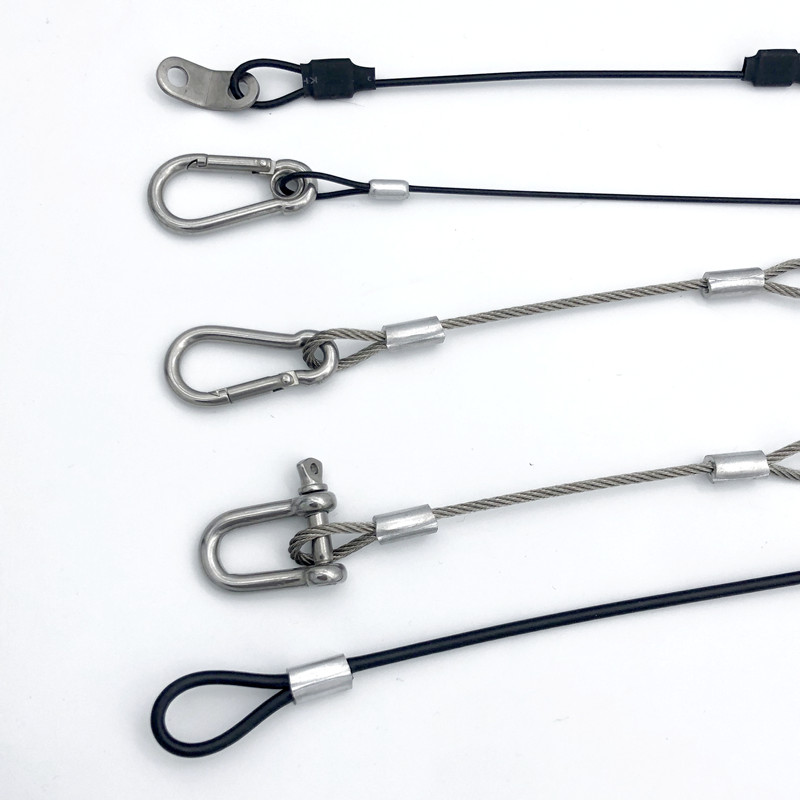

All our shackles are available in bulk quantities, or as part of completed cable assemblies. We specialize in cable assembly fabrication, and can create the ideal assembly for your application, saving you time and money in production costs.

Request a quotefor the galvanized, stainless steel, or alloy shackles you need, or contact Lexco® Cable for more information. If you don’t see the right shackle for your application in our online inventory, please contact us for assistance. We’re here to help!

Heavy duty shackles is bolt type large capacity shackle. The working load is from 200 ton up to 1000 ton with a safety factor of 5 times. This shackle comes with a safety bolt and cotter pin that offers double safety and can reduce the risks of accidental unscrewing of the pin.

European type shackle is a large Bow shackle made by carbon steel. It has the same body shape as Crosby G209 shackles, but it is a commercial type. This bow shackle is one of our most selling commercial shackles.

D shackle is the most widely used shackles to make a wire rope sling. European type D shackle has a large D size. It is one of our best sales shackles. It is also called zinc plated D shackles or galvanized D shackles.

JIS Standard screw pin chain shackles are also called JIS standard screw pin D shackles. It has the same body as European type large D shackle, also made of carbon steel. It is a commercial type shackles with good quality but very competitive prices.

JIS Standard commercial type screw pin bow shackle is one of the most popular shackles that used for general applications. Comparing with Crosby shackles or Green pin shackles, this shackle is made by regular carbon steel. It has very good quality, but competitive price.

Trawling shackles featured with a square head screw pin. It is a commercial grade chain shackles designed for trawling applications, not for bearing critical loads or lifting purpose. It has same specification as Crosby 2131 trawling shackles.

We"re well-known as one of the leading wire rope shackles manufacturers and suppliers in China. Welcome to buy high quality wire rope shackles at competitive price from our factory. Also, free sample is available for quality checking. open speltor socket, conveyor belt wheel, Wire Rope Shackles

US Type screw pin anchor shackles are drop forged heavy duty shackles made according to Crosby specifications and EN standards. It"s a drop forged heavy-duty model with a Bow shape, used to attach on wire rope sling or polyester slings for material handling purposes. We also called it anchor shackle or bow shackle or Crosby specification shackles. It conforms with EN 13889, ASME B30.26 standard and meets performance requirements of Federal Specification RR-C-271F type IVA, grade A, class 2. We provide 4 times safety factor and 6 times safety factor for your choice. And different color pins are available upon your request.

TITAN SUHE is a professional manufacturer of lifting products including steel wire ropes, polyester webbing slings, Grade 8 chain, and chain attachments, rigging hardware, and wire rope accessories. Our rigging hardware includes drop forged wire rope shackles, mild steel shackles, malleable wire rope clips, turnbuckles, grade 8 chain hooks and attachments, and so on. With advanced manufacturing equipment and a quality control system, our products have very good quality. Most of them have been CE and GS certified. Up to now, our products have been exported to 60 countries and regions. We provide a one-year quality warranty for all our products except these items that are already described as light-duty.

Welcome to buy the newest and competitive price DAWSON DS2160 Alloy Steel Bolt Type Wide Body Shackle for Synthetic Web Slings, Synthetic Round Slings or Wire Rope Slings from our factory. We"re one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Wide shackle uses overall forged alloy steel, its safety factor (testing load to working load): 2 for 55t-300t; 1.5 for 400t; 1.33 for 500t-2000t, it suits for connection of synthetic fiber sling and wire rope sling.

Below is a sampling of shackle styles we offer. Similar to other rigging hardware, shackles can be used in a variety of load securement and rigging applications.

Soft Shackles are constructed of HMPE high-modulus polyethylene) rope and used in place of traditional metal shackles. They are light weight, high strength, easy handling, and abrasion resistant, among many other perks.

Synthetic Sling Shackles are designed to be used specifically with synthetic flat web or round slings. The wider bow helps increase the sling’s efficiency by reducing bunching or pinching which can damage the slings.

Wide Body Shackles or Sling Shackles have an increased bow radius. This increased bow radius promotes a better D/d ratio, eliminates the need for a thimble eye, and prevents bunching and kinking of slings.

When selecting a shackle for your application, always ensure the working load limit (WLL) at least meets or exceeds the load for the application. Your shackle WLL should also be comparable to the other rigging hardware and slings being used.

Screw Pin Shackle uses a threaded pin inserted through the shackle ears and tightened down. The fast and easy connection and disconnection of these shackles make them convenient for “pick and place” applications. Screw pin shackles can be used in applications where side loading is present with consideration to the reduced WLL.

Round Pin Shackle uses a round, unthreaded pin which is secured by a cotter pin. Round pin shackles are only to be used in applications where the load is applied strictly in-line such as suspension, tie-down, or towing.

Bolt-Type Shackle uses a nut, and cotter pin combination to secure the bolt in place. Bolt-type shackles are able to be used in any application a screw pin or round pin shackles are used. Bolt-type shackles can be used in applications where side loading is present with consideration to the reduced WLL. Bolt-type shackles are recommended for long-term or permanent applications.

Wire rope thimbles also known as cable thimbles, are used for making reinforce loop(eyelet) with grips, clips or clamps by preventing fraying caused by friction at the bearing anchor point to protect and extend the service life of the wire rope or sling. They are just one of the many types of wire rope fittings (ferrules, wire rope clips, terminals, etc.).

Wire rope thimbles are available in a variety of strengths and materials(carbon steel and stainless steel, see our post on Surface Finish: 4 Common Types You Should Know) but mainly they come in two different duty grades.

If you use it in high moisture or corrosive environments, recommend our stainless steel wire rope thimbles which can offer resistance to corrosion on the surface, particularly in marine applications.

Simply wrap the end of the wire rope around the outer groove of the thimble, lace the dead end of the wire rope past the U-bolt of the wire rope grips or a wire rope ferrule crimp to hold onto the bearing anchor point at the end of the thimble to prevent fraying caused by friction.

Once in place, put another wire rope clip as near the loop you just wrapped over the thimble. Turn nuts firmly but do not yet tighten to the proper torque, we recommend using a crimping/swaging tool to compress the ferrule firmly onto the rope to hold your thimble loop securely.

Alternatively, you can use a wire rope ferrule crimp to secure your thimble in place. this method is quick and easy to install. For further information on installation using a wire rope ferrule please – click here

Wire rope thimbles are used in conjunction with cable and rope to protect the eyes and will allow for smooth rope guiding around natural curves. So that the most important thing is to make sure the thimble eye securely fastened. Here are some tips for correctly using wire rope thimble:

Make sure that the cable thimbles size properly and securely fastened in the eye of the loop, not too loose or too tighten, so they can create an extra layer of support to connect with other properly sized rigging fittings.

While you are using a vinyl coated cable, you should multiply the actual size of the cable, usually use a larger size thimble than normal, for the actual diameter is the thickness of the vinyl coating plus the inside wire rope diameter. For example, if you are using a 5/16″ vinyl coated cable that is coated to 3/8″ diameter, you’d want to use a 3/8″ wire rope thimble.
