Jakob Rope SystemsJakob Rope Systems is one of the market leaders in the manufacture and supply of top-end, design-forward solutions to industrial and construction-related rope and cable applications in which elegance, simplicity and superlative quality are required.

Now, for more than a century and in over 55 countries, Jakob offers a range of steel rope products to our clients who return time and again seeking a reliable maker and provider of stainless steel wire ropes, rod fasteners, nets and unique fittings, all custom-designed and produced to fit exact specifications. At Jakob, we understand it’s the little details that make the big differences.

Every piece of finished goods leaving our warehouses is put through a stringent testing process to ensure compliance with AISI 316, ISO and DIN standards. Our cable railing, wire mesh, wire ropes, and rods can be used in multiple applications, both indoor and outdoor and at various scales, such as sign stanchions, shelving, as trellises on green walls, safety netting, and even in zoo enclosures.

Jakob and our USA -based team can provide cables and wire netting solutions for any commercial and business application. We take pride in offering custom-made designs to fit our clients’ needs.

Jakob products are manufactured in Switzerland using only high-quality AISI 316. Whether your project needs stainless steel fittings, stainless steel fasteners or any stainless steel hardware, you won"t find a better product anywhere in the world.

This section includes stainless steel railing balustrades and guardrail created with our wire rope wire mesh netting, rods, fittings, and other INOX Line components manufactured by Jakob, Inc.. Components provided by Jakob, Inc. are fabricated from chromium-nickel austenitic stainless steel with low carbon content and containing molybdenum for greater corrosion resistance. These stainless steel, corrosion resistant, low maintenance, high tensile strength products provide design flexibility, durability, high strength to weight ratio, functionality, and impressive aesthetics.

** NOTE TO SPECIFIER ** It is the Architect"s responsibility to design the stainless steel wire rope railings including supporting posts, frames, and anchorage method to comply with applicable codes and regulations. Consult load tables contained in the manufacturers product data for required data. The following paragraphs identify typical code conditions, edit as required to suit actual requirements. Delete if data is indicated on the Drawings.

A.Structural Requirements: Provide wire rope railings systems capable of withstanding the effects of gravity loads and the following loads and stresses within limits and under conditions indicated on the Drawings:

** NOTE TO SPECIFIER ** It is the Architect"s responsibility to design the stainless steel wire rope railings including the height of railings, size and clearance of handrails, size of openings in guardrails, and other attributes to comply with applicable codes and regulations. The following paragraphs identify typical code conditions, edit as required to suit actual requirements. Delete if data is indicated on the Drawings.

C.Wire rope railing systems shall be designed, fabricated, and installed to accommodate expansion and contraction of metal components without causing undue stress, buckling, opening of joints, and distortion.

D.Design supports and hardware to withstand loads encountered without excessive deflection or distortion when cables are tensioned to required amounts required to conform to applicable building codes.

E.Exposed fasteners shall be of same materials, color and finish as material to which applied. Exposed surfaces throughout project shall have same inherent texture and color for similar locations.

B.Product Data: Provide manufacturer"s standard catalog data for specified products demonstrating compliance with referenced standards. Provide list of fittings being provided with descriptions, load capabilities, and either photographs or drawings for each type.

4.Where materials or fabrications are indicated to comply with design loadings, include material and safety factor properties, and other information needed for structural analysis.

F.Operation and Maintenance Data: Include methods for maintaining installed products and precautions against cleaning materials and methods detrimental to finishes and performance.

A.Manufacturer Qualifications: Company specializing in manufacturer of stainless steel wire rope, fittings, and other stainless steel components with 10 years minimum successful experience.

** NOTE TO SPECIFIER ** Include a mock-up if the project size and/or quality warrant taking such a precaution. The following is one example of how a mock-up on a large project might be specified.

D.Preinstallation Meetings: Conduct meetings including Contractor, Architect, fabricator, installer and other subcontractors whose work involves cable railing system to verify project requirements, framing and support conditions, mounting surfaces and manufacturer"s installation. Comply with Division 1 requirements.

B.Handle and store products according to manufacturer"s recommendations. Leave products wrapped or otherwise protected and under clean and dry storage conditions until required for installation.

A.Acceptable Manufacturer: Jakob Rope Systems, which is located at: 2665 N.W. 1st Ave.; Boca Raton, FL 33431; Toll Free Tel: 866-215-1421; Tel: 561-330-6502; Fax: 561-330-6508; Email: request info; Web: https://www.jakob-usa.com

** NOTE TO SPECIFIER ** Delete one of the following two paragraphs; coordinate with requirements of Division 1 section on product options and substitutions.

** NOTE TO SPECIFIER ** Select wire rope paragraph(s) required and delete those not required. 6x7 wire rope is used for most railing applications due to ease of use and flexibility to accommodate stairs and curves. 1x19 has higher tensile capacity and is more resistant to bending and deformation under load. Typically 3 mm (1/8 inch) to 6 mm (1/4 inch) is used for cable infill. The type and size of wire rope to be used can be selected by Architect from Jakob product literature and load tables. Contact Jakob for assistance in determining the correct cable size and end fittings for your application.

A.Material: ASTM A 492 and ASTM A 555, Type 316 stainless steel. Fabricate wire rope with integral colored filament designating specific manufacturer.

1.Provide optimum adjustment in both directions by calculating final tendon lengths with allowance for tensioning fittings with 2/3 open and with 1/3 of thread length engaged.

** NOTE TO SPECIFIER ** Wire netting is a flexible, extendable, stainless steel wire mesh that when stretched between perimeter supports accommodates stretch and tension forces in three dimensions. Use the following paragraphs if Webnet is to be used as infill for guardrails. Delete if not required.

A.Material: Webnet as manufactured by Jakob, Inc. Parallel stainless steel wire ropes connected by reciprocally curved offset sleeves or clamps such that ropes are neither knotted nor crossed. Wire rope shall be fabricated from cold-drawn, AISI Type 316 stainless steel wire complying with ASTM A 492 and ASTM A 555.

** NOTE TO SPECIFIER ** The type and size of wire netting to be used can be selected by Architect from Jakob product literature and load tables. Contact Jakob for assistance in determining the correct cable size and end fittings for your application.

** NOTE TO SPECIFIER ** Select the perimeter configuration required from the following paragraphs. Webnet can be installed vertically or horizontally and with numerous perimeter conditions to accommodate various attachment methods. Vertically installed mesh is less susceptible to climbing. Refer to Jakob product literature for diagrams and descriptions of the perimeter configurations available.

** NOTE TO SPECIFIER ** Guardrails can be infilled with vertical solid stainless steel rod spindles. Edit and include this article if rod spindles required. Contact Jakob for assistance in determining the correct rod size and end fittings for your application. Delete if not required.

** NOTE TO SPECIFIER ** Stainless steel rods are available in eight standard diameter sizes as listed in the following paragraph. Select the diameter required and delete those not required.

** NOTE TO SPECIFIER ** Stainless steel rods can be shop swaged with end connectors or rolled with external threaded connectors for on-site attachment. Select the rod termination required and delete those not required.

** NOTE TO SPECIFIER ** Guardrails and infill require fittings for attachment and connection of stainless steel wire rope wire netting and metal rods to support framework and substrates. Edit the following paragraphs as required. Contact Jakob for assistance in determining the correct end fittings for your application.

** NOTE TO SPECIFIER ** Fitting strength is typically a percentage of the wire minimum breaking strength. Depending on type of fitting, breaking strength can vary from 40 to 120 percent of wire rope minimum breaking strength.

** NOTE TO SPECIFIER ** Refer to Jakob product literature for breaking strength of each type of fitting and edit and/or select one of the following paragraphs as required. Delete the paragraph not required.

C.Types: Fabricate from AISI Type 316 and 316L stainless steel complying with ASTM F 1145; INOX Line Fittings as manufactured by Jakob, Inc. Provide sizes and types as required to meet project design conditions specified and indicated on Drawings and reviewed shop drawings including:

** NOTE TO SPECIFIER ** Jakob, 1nc. manufactures numerous stainless steel fittings for wire rope ends, for attachment to different substrates, and for connecting wire rope segments. To ensure structural compatibility it is important the Jakob wire rope only be used with Jakob fittings. Typically required fittings will be determined by manufacturer to accommodate Project conditions and loadings. Edit the following to indicate basic type of fittings required for specific project. Delete the fitting type paragraphs not required.

1.Shop applied swaged rope ends: Threaded external and internal swivel ends, turnbuckles, tensioning screws, end stops, clevis ends, eye ends, loop ends, and end cones.

2.Screwed rope ends for on-site assembly: Threaded external and internal swivel ends, turnbuckles, tensioning screws, end stops, clevis ends, eye ends, loop ends, and end cones.

5.Anchoring systems: Studs, clevis, eye end, eye bolt, slotted, spacer baskets, radial clevis holder, cross clamp with support disk, slotted rope deflector, ball cage.

D.Accessories: Provide threaded couplings, tensioning screws, cover disks, eye bolts, eye nuts, carabiners, shackles, clips, welded rings, screws, washers, lock nuts, hexagonal nuts, dome nuts, wall anchors, screws, and wire endcaps as required to complete the installation.

E.Coordinate requirements, dimensions and spacings of wire rope railing system to ensure required factory drilled holes in supporting framework are correctly located.

C.Verify supporting posts and framework for stainless steel wire rope railings are prepared for attachment of anchors, fittings, wire rope, and wire netting and transfer of calculated loads.

B.Inventory components to ensure all required items are available for installation. Inspect components for damage. Remove damaged components from site and replace.

B.Provide anchorage devices and fittings to secure to in-place construction; including threaded fittings for concrete inserts, toggle bolts and through-bolts.

B.Remove temporary coverings and protection of adjacent work areas. Clean installed products in accordance with manufacturer"s instructions before owner"s acceptance.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Wire rope is technically defined as multi-wire strands laid geometrically around a core while also used more generally as a term to classify multiple product families including aircraft cable, coated aircraft cable, general purpose wire rope, strand, rotation resistant wire rope, compacted/swaged wire rope, and cable laid wire rope.

Aircraft cable does not fit the definition of wire rope in the strictest sense as it does not have an independent core, but rather a strand core, in which the center is one of the strands that is laid with the outside strand layers. Aircraft cable is available in diameters 3/8" or less with breaking strengths similar to that of equal diameter independent wire rope core (IWRC) and is available in stainless steel and galvanized steel.

Wire rope can be galvanized via three processes. Listed from least corrosion-resistant to the most corrosion-resistant, they are electro-galvanizing, hot-dip galvanizing, and drawn-galvanizing. In addition to being the most corrosion-resistant types of galvanized wire rope, drawn-galvanized has another added benefit which is a breaking strength that is the same as bright wire rope does. Electro-galvanized and hot-dip galvanized wire rope have breaking strengths that are approximately 10% lower.

Wire rope is specified by the number of strands in the rope, the number of wires in each strand, and a description of the core’s material of construction. For example, the notation “6x7 FC” means that the rope has six strands with seven wires in each strand and a fiber core. Commonly used core designations include FC (fiber core), independent wire rope core (IWRC), wire strand core (WSC), and poly core (PC).

There are two elements to wire rope lubrication, the core, and outer strands. IWRC wire rope always has a lubricated core (unless specially ordered as otherwise). Bright wire rope always has lubricated outer strands.  Galvanized wire rope can be manufactured in either dry finish or lubricated with respect to the outer strands.  Typically stainless steel wire rope is manufactured with a lubricated IWRC and dry finish outer strands.

Lexco® Cable offers a variety of swageless end fittings for use in cable assembly systems from 1/16” to 1 ½” diameter. Our swageless fittings require no* special tools for assembly, making field installation quick and easy. Most swageless cable end fittings will hold the maximum load of the cable to which they’re attached when installed correctly.

Swageless fittings are manufactured from self-colored steel, zinc plated steel, galvanized steel and stainless steel. Our large selection of swageless cable end fittings makes it easy to find the right one for your application. Swageless fittings:

Please inform your Lexco® sales representative of your wire rope construction to ensure compatibility with the wire rope plug. The Series A wire rope plugs are for general purpose constructions and are standard. The Series B wire rope plugs are for strand and some rotation resistant wire rope constructions. If you are unsure which fitting is right for your application, please feel free tocontact usfor assistance. We’re here to help!

Stainless steel mechanical cable is, by its very design, corrosion resistant. Even setting aside mechanical cable for a moment, stainless steel, as a material choice in any use case, ensures impressive resistance to environmental elements that would corrode this popular iron and carbon alloy. However, for all its corrosion-resistant properties, even stainless steel remains at risk of oxidation when applied to a harsh environment. It is therefore precisely when stainless steel requires additional protection from hostile conditions that cable design engineers may choose to perform an operation known as passivation to the stainless steel cable.

Passivation extends the life and quality of a stainless steel cable (and/or wire rope) by maximizing its corrosion resistance. This maximizing process involves treating the surface of the stainless steel mechanical cable with either nitric acid or citric acid, which removes free iron from the cable filament surfaces themselves. The acid removes the iron particles that exist on the surface layer of the cable, which may cause oxidation if certain conditions are present. Without passivation, by way of comparison, the free iron in the stainless steel cable would react with the oxygen in the air to ultimately introduce rust to the cable. Passivation removes this unwanted iron, leaving the critical element chromium to act as the protectant against oxidation.

Once the passivated cable is then exposed to oxygen, the oxygen bonds freely with the surface, creating an oxide layer that inherently protects the cable. The oxygen now binds to the surface instead of oxidizing. So the once potentially hostile and harmful element oxygen is now free to make unfettered contact with the stainless steel cable without consequence.

However, as protected as passivation leaves stainless steel cable, engineers must still treat the cable with care. Passivation creates a microlayer of protection against corrosion, but this surface treatment can be inadvertently stripped by the presence of friction, or other surface penetrant. So when installing, for instance, passivated stainless steel cable into a motion control system, design engineers must mitigate any potential sources of unwanted friction or other types of damage to the surface of the cable itself.

When passivating stainless steel cable, the cable is first cleaned through a process known as ultrasonic cleaning. Ultrasonic cleaning is the process of literally bathing the stainless steel cable in a solution where high frequency vibrations resonate the cable. These vibrating forces effectively shake free any unwanted particulate in anticipation of the passivation process.

Because passivation is designed to increase corrosion resistance to the surface of the cable filaments, it’s critical to understand that the role of ultrasonic cleaning is therefore to expose the most amount of cable surface area possible to later passivate. Once the stainless steel cable is ultrasonically cleaned, passivation can begin.

Although stainless steel cable is ideally suited to passivation, the acid used and degree to which the cable is exposed to it is determined by the grade of stainless steel. 304 stainless steel, for example, has a 18% chromium content, whereas 316 has 16% of the same element. Because of this subtle difference in material components, each will tolerate passivation acids differently. So while passivation is ideal for stainless steel, the acids used, as well as the exposure to them is decided on a case-by-case basis.

Take tungsten cable, for instance. It is not necessary for tungsten mechanical cable to be passivated because wolfram does not contain free iron. Remembering that it is the presence of free iron that puts stainless steel cable at risk of corrosion, wolfram simply does not possess the same molecular components and thus, the same risks.

If tungsten was dipped in passivating acids, by way of comparing it to stainless steel cable, it might erode the material to the detriment of its strength and integrity.

What’s more, galvanized steel cable likewise does not require passivation because galvanized cable, by design, contains an added layer of zinc. This protective layer of elementary material provides comparable oxidation resistance for galvanized steel cable that’s similar to that which is achieved with passivated stainless steel cable.

These industries generally possess moisture-rich environments that put stainless steel cable in danger of corrosion were it not passivated. Moreover, anywhere oxygen is present, stainless steel cable performs best when passivated.

Passivation does not affect the structural integrity of the stainless steel because the process only affects a negligible amount of surface material. When in doubt, consult your cable design engineer to ensure that the cable application under consideration requires or benefits from passivation.

Sava possesses decades of in-house engineering, quality and production expertise to accommodate any stainless steel passivation project. Contact us for more information about cable passivation.

Wire rope and cable are each considered a “machine”. The configuration and method of manufacture combined with the proper selection of material when designed for a specific purpose enables a wire rope or cable to transmit forces, motion and energy in some predetermined manner and to some desired end.

Two or more wires concentrically laid around a center wire is called a strand. It may consist of one or more layers. Typically, the number of wires in a strand is 7, 19 or 37. A group of strands laid around a core would be called a cable or wire rope. In terms of product designation, 7 strands with 19 wires in each strand would be a 7×19 cable: 7 strands with 7 wires in each strand would be a 7×7 cable.

Materials Different applications for wire rope present varying demands for strength, abrasion and corrosion resistance. In order to meet these requirements, wire rope is produced in a number of different materials.

Stainless Steel This is used where corrosion is a prime factor and the cost increase warrants its use. The 18% chromium, 8% nickel alloy known as type 302 is the most common grade accepted due to both corrosion resistance and high strength. Other types frequently used in wire rope are 304, 305, 316 and 321, each having its specific advantage over the other. Type 305 is used where non-magnetic properties are required, however, there is a slight loss of strength.

Galvanized Carbon Steel This is used where strength is a prime factor and corrosion resistance is not great enough to require the use of stainless steel. The lower cost is usually a consideration in the selection of galvanized carbon steel. Wires used in these wire ropes are individually coated with a layer of zinc which offers a good measure of protection from corrosive elements.

Cable Construction The greater the number of wires in a strand or cable of a given diameter, the more flexibility it has. A 1×7 or a 1×19 strand, having 7 and 19 wires respectively, is used principally as a fixed member, as a straight linkage, or where flexing is minimal.

Cables designed with 3×7, 7×7 and 7×19 construction provide for increasing degrees of flexibility but decreased abrasion resistance. These designs would be incorporated where continuous flexing is a requirement.

Selecting Wire Rope When selecting a wire rope to give the best service, there are four requirements which should be given consideration. A proper choice is made by correctly estimating the relative importance of these requirements and selecting a rope which has the qualities best suited to withstand the effects of continued use. The rope should possess:Strength sufficient to take care of the maximum load that may be applied, with a proper safety factor.

Strength Wire rope in service is subjected to several kinds of stresses. The stresses most frequently encountered are direct tension, stress due to acceleration, stress due to sudden or shock loads, stress due to bending, and stress resulting from several forces acting at one time. For the most part, these stresses can be converted into terms of simple tension, and a rope of approximately the correct strength can be chosen. As the strength of a wire rope is determined by its, size, grade and construction, these three factors should be considered.

Safety Factors The safety factor is the ratio of the strength of the rope to the working load. A wire rope with a strength of 10,000 pounds and a total working load of 2,000 pounds would be operating with a safety factor of five.

It is not possible to set safety factors for the various types of wire rope using equipment, as this factor can vary with conditions on individual units of equipment.

The proper safety factor depends not only on the loads applied, but also on the speed of operation, shock load applied, the type of fittings used for securing the rope ends, the acceleration and deceleration, the length of rope, the number, size and location of sheaves and drums, the factors causing abrasion and corrosion and the facilities for inspection.

Fatigue Fatigue failure of the wires in a wire rope is the result of the propagation of small cracks under repeated applications of bending loads. It occurs when ropes operate over comparatively small sheaves or drums. The repeated bending of the individual wires, as the rope bends when passing over the sheaves or drums, and the straightening of the individual wires, as the rope leaves the sheaves or drums, causing fatigue. The effect of fatigue on wires is illustrated by bending a wire repeatedly back and forth until it breaks.

The best means of preventing early fatigue of wire ropes is to use sheaves and drums of adequate size. To increase the resistance to fatigue, a rope of more flexible construction should be used, as increased flexibility is secured through the use of smaller wires.

Abrasive Wear The ability of a wire rope to withstand abrasion is determined by the size, the carbon and manganese content, the heat treatment of the outer wires and the construction of the rope. The larger outer wires of the less flexible constructions are better able to withstand abrasion than the finer outer wires of the more flexible ropes. The higher carbon and manganese content and the heat treatment used in producing wire for the stronger ropes, make the higher grade ropes better able to withstand abrasive wear than the lower grade ropes.

Effects of Bending All wire ropes, except stationary ropes used as guys or supports, are subjected to bending around sheaves or drums. The service obtained from wire ropes is, to a large extent, dependent upon the proper choice and location of the sheaves and drums about which it operates.

A wire rope may be considered a machine in which the individual elements (wires and strands) slide upon each other when the rope is bent. Therefore, as a prerequisite to the satisfactory operation of wire rope over sheaves and drums, the rope must be properly lubricated.

Loss of strength due to bending is caused by the inability of the individual strands and wires to adjust themselves to their changed position when the rope is bent. Tests made by the National Institute of Standards and Technology show that the rope strength decreases in a marked degree as the sheave diameter grows smaller with respect to the diameter of the rope. The loss of strength due to bending wire ropes over the sheaves found in common use will not exceed 6% and will usually be about 4%.

The bending of a wire rope is accompanied by readjustment in the positions of the strands and wires and results in actual bending of the wires. Repetitive flexing of the wires develops bending loads which, even though well within the elastic limit of the wires, set up points of stress concentration.

The fatigue effect of bending appears in the form of small cracks in the wires at these over-stressed foci. These cracks propagate under repeated stress cycles, until the remaining sound metal is inadequate to withstand the bending load. This results in broken wires showing no apparent contraction of cross section.

Experience has established the fact that from the service view-point, a very definite relationship exists between the size of the individual outer wires of a wire rope and the size of the sheave or drum about which it operates. Sheaves and drums smaller than 200 times the diameter of the outer wires will cause permanent set in a heavily loaded rope. Good practice requires the use of sheaves and drums with diameters 800 times the diameter of the outer wires in the rope for heavily loaded fast-moving ropes.

It is impossible to give a definite minimum size of sheave or drum about which a wire rope will operate with satisfactory results, because of the other factors affecting the useful life of the rope. If the loads are light or the speed slow, smaller sheaves and drums can be used without causing early fatigue of the wires than if the loads are heavy or the speed is fast. Reverse bends, where a rope is bent in one direction and then in the opposite direction, cause excessive fatigue and should be avoided whenever possible. When a reverse bend is necessary larger sheaves are required than would be the case if the rope were bent in one direction only.

Stretch of Wire Rope The stretch of a wire rope under load is the result of two components: the structural stretch and the elastic stretch. Structural stretch of wire rope is caused by the lengthening of the rope lay, compression of the core and adjustment of the wires and strands to the load placed upon the wire rope. The elastic stretch is caused by elongation of the wires.

The structural stretch varies with the size of core, the lengths of lays and the construction of the rope. This stretch also varies with the loads imposed and the amount of bending to which the rope is subjected. For estimating this stretch the value of one-half percent, or .005 times the length of the rope under load, gives an approximate figure. If loads are light, one-quarter percent or .0025 times the rope length may be used. With heavy loads, this stretch may approach one percent, or .01 times the rope length.

The elastic stretch of a wire rope is directly proportional to the load and the length of rope under load, and inversely proportional to the metallic area and modulus of elasticity. This applies only to loads that do not exceed the elastic limit of a wire rope. The elastic limit of stainless steel wire rope is approximately 60% of its breaking strength and for galvanized ropes it is approximately 50%.

Preformed Wire Ropes Preformed ropes differ from the standard, or non-preformed ropes, in that the individual wires in the strands and the strands in the rope are preformed, or pre-shaped to their proper shape before they are assembled in the finished rope.

This, in turn, results in preformed wire ropes having the following characteristics:They can be cut without the seizings necessary to retain the rope structure of non-preformed ropes.

They are substantially free from liveliness and twisting tendencies. This makes installation and handling easier, and lessens the likelihood of damage to the rope from kinking or fouling. Preforming permits the more general use of Lang lay and wire core constructions.

Removal of internal stresses increase resistance to fatigue from bending. This results in increased service where ability to withstand bending is the important requirement. It also permits the use of ropes with larger outer wires, when increased wear resistance is desired.

Outer wires will wear thinner before breaking, and broken wire ends will not protrude from the rope to injure worker’s hands, to nick and distort adjacent wires, or to wear sheaves and drums. Because of the fact that broken wire ends do not porcupine, they are not as noticeable as they are in non-preformed ropes. This necessitates the use of greater care when inspecting worn preformed ropes, to determine their true condition.

3. We do our best to ensure that the goods which we supply are in accordance with the order and specification of the customers so far as quantity, size and quality are concerned. However, we accept no responsibility for the specification itself nor do we warrant that any goods supplied by us are tested or sold as suitable for any particular purpose treatment or conditions or that the goods possess any particular qualities save as may be set out in the customers specification. We can accept no claim for consequential loss or damage resulting from the use of our goods.

4. (A) All offers, quotations and contracts are subject to the express condition that we will not be in any way responsible for the loss damage or delays arising from strikes, lock-outs, cessation of labour, transport delays, shortened hours of labour, accident of any kind, perils of the sea or rivers, war or the like of any other cause of contingency whatsoever beyond our control whether ejusdem generis with the preceding causes or not.

(B) Should we be prevented from delivery part of the goods by reason of any of the causes referred to in clause 4, hereof we will deliver and the customer will take such part of the goods as we shall at the time fixed for delivery, be able to deliver. The customer shall pay for the goods so delivered the same proportion of the pries as the goods delivered bear to the whole of the goods agreed to be sold.

(C) Not withstanding the rate or time of delivery provided for in relation to any transaction, no guarantee or warranty as to rate of delivery or time of delivery is given or implied.

(F) Every endeavour will be made to supple and deliver the order quantity of goods but we reserve the right to supply or deliver the quantity order plus or minus 10% of the ordered quantity. The supply and delivery of goods within this limit shall be deemed a due performance of the contract and the contract price shall be adjusted pro-rate.

2. (A) All goods supplied by us shall remain the sole and absolute property of us until such time as the customer shall have paid us the agreed price together with the full price of any other goods the subject of any other contract with us.

(C) Until such a time as the customer becomes the owner of the goods, the customer will store them on his premises separately from the customer’s own goods or those of any other person and in a manner which makes them readily identifiable as our goods.

(D) The customers right to possession of the goods shall cease if he, not being a company commit an available act of bankruptcy or if he, being a company, foes anything or fails to do anything which would entitle a receiver to take possession of any assets or which would enable any person to present a petition for winding-up. We and our employees and agents may for the purpose of recovery of its foods enter upon any premises where they are stored or where they are reasonably thought to be stored and may repossess the same.

(E) Subject to the terms hereof the customer is licensed by us to agree and to sell our goods, subject to the express condition that such an agreement to sell shall take place as agents and bailees for us whether the customer sells on his own account or not and that the entire proceeds thereof are held in trust for us and are not mingled with other monies and shall be at all time identifiable as our monies.

3. Goods will be supplied in accordance with the specification and sample approved by the customer provided that a tolerance not exceeding plus or minus 10% will be allowed in any dimension.

5. We do our best to honour delivery dates but cannot accept responsibility for delays outside our reasonable control and such delays shall not entitle a customer to refuse delivery after date, to claim damages or to repudiate the contract.

7. The customer shall indemnify us against all damages, penalties, costs and expenses to which we may become liable as a result of work done in accordance with the customers specification which involves the infringement of any letters patents registered design copyright or other similar form of protection.

8. If the buyer shall make default in or commit a breach of the contract, or of any other of his obligations to the seller, or if any distress or execution shall be levied upon the buyer’s property or assets, or if the buyer shall make or offer to make any arrangement or composition with creditors, or commit any act of bankruptcy, or if any petition or receiving order in bankruptcy shall be presented or made against him if the buyer is a limited company and any resolution or petition to wind-up such company’s business (other than for the purpose or amalgamation or reconstruction) shall be passed or presented, or if a receiver of such company’s undertaking, property or assets or any other part thereof shall be appointed, the seller shall have the right forthwith to determine any contract then subsisting and upon written notice of such determination being posted to the buyer’s last known address any subsisting contracts shall be deemed to have been determined without prejudice to any claim or right the seller may otherwise make or exercise.

9. Items will only be exchanged or credited when the item is being returned back to us in the original condition but a re-stocking fee of 20% is applicable and no credit for P&P is applicable. If the item is being returned for a fault only then when we have checked the product, we will then give a full refund inc P&P. It is also the customer’s responsibility to arrange the return at the cost. All returns must be notified to us to be issued with a return number, failing to write the number on the package clearly, this may be refused.

11. A copy of these conditions covers every quotation which we submit to customers and they therefore form part of the business contract which we hope will result from the acceptance of the quotation. In the case of business concluded orally your attention will be drawn at the time to those conditions of which copies are available on request or for inspection in our offices. Any variation of these conditions in any document of the customer shall be effective and inapplicable unless specifically accepted in writing by us.

3. We do our best to ensure that the goods which we supply are in accordance with the order and specification of the customers so far as quantity, size and quality are concerned. However, we accept no responsibility for the specification itself nor do we warrant that any goods supplied by us are tested or sold as suitable for any particular purpose treatment or conditions or that the goods possess any particular qualities save as may be set out in the customers specification. We can accept no claim for consequential loss or damage resulting from the use of our goods.

4. (A) All offers, quotations and contracts are subject to the express condition that we will not be in any way responsible for the loss damage or delays arising from strikes, lock-outs, cessation of labour, transport delays, shortened hours of labour, accident of any kind, perils of the sea or rivers, war or the like of any other cause of contingency whatsoever beyond our control whether ejusdem generis with the preceding causes or not.

(B) Should we be prevented from delivery part of the goods by reason of any of the causes referred to in clause 4, hereof we will deliver and the customer will take such part of the goods as we shall at the time fixed for delivery, be able to deliver. The customer shall pay for the goods so delivered the same proportion of the pries as the goods delivered bear to the whole of the goods agreed to be sold.

(C) Not withstanding the rate or time of delivery provided for in relation to any transaction, no guarantee or warranty as to rate of delivery or time of delivery is given or implied.

(F) Every endeavour will be made to supple and deliver the order quantity of goods but we reserve the right to supply or deliver the quantity order plus or minus 10% of the ordered quantity. The supply and delivery of goods within this limit shall be deemed a due performance of the contract and the contract price shall be adjusted pro-rate.

2. (A) All goods supplied by us shall remain the sole and absolute property of us until such time as the customer shall have paid us the agreed price together with the full price of any other goods the subject of any other contract with us.

(C) Until such a time as the customer becomes the owner of the goods, the customer will store them on his premises separately from the customer’s own goods or those of any other person and in a manner which makes them readily identifiable as our goods.

(D) The customers right to possession of the goods shall cease if he, not being a company commit an available act of bankruptcy or if he, being a company, foes anything or fails to do anything which would entitle a receiver to take possession of any assets or which would enable any person to present a petition for winding-up. We and our employees and agents may for the purpose of recovery of its foods enter upon any premises where they are stored or where they are reasonably thought to be stored and may repossess the same.

(E) Subject to the terms hereof the customer is licensed by us to agree and to sell our goods, subject to the express condition that such an agreement to sell shall take place as agents and bailees for us whether the customer sells on his own account or not and that the entire proceeds thereof are held in trust for us and are not mingled with other monies and shall be at all time identifiable as our monies.

3. Goods will be supplied in accordance with the specification and sample approved by the customer provided that a tolerance not exceeding plus or minus 10% will be allowed in any dimension.

5. We do our best to honour delivery dates but cannot accept responsibility for delays outside our reasonable control and such delays shall not entitle a customer to refuse delivery after date, to claim damages or to repudiate the contract.

7. The customer shall indemnify us against all damages, penalties, costs and expenses to which we may become liable as a result of work done in accordance with the customers specification which involves the infringement of any letters patents registered design copyright or other similar form of protection.

8. If the buyer shall make default in or commit a breach of the contract, or of any other of his obligations to the seller, or if any distress or execution shall be levied upon the buyer’s property or assets, or if the buyer shall make or offer to make any arrangement or composition with creditors, or commit any act of bankruptcy, or if any petition or receiving order in bankruptcy shall be presented or made against him if the buyer is a limited company and any resolution or petition to wind-up such company’s business (other than for the purpose or amalgamation or reconstruction) shall be passed or presented, or if a receiver of such company’s undertaking, property or assets or any other part thereof shall be appointed, the seller shall have the right forthwith to determine any contract then subsisting and upon written notice of such determination being posted to the buyer’s last known address any subsisting contracts shall be deemed to have been determined without prejudice to any claim or right the seller may otherwise make or exercise.

9. Items will only be exchanged or credited when the item is being returned back to us in the original condition but a re-stocking fee of 20% is applicable and no credit for P&P is applicable. If the item is being returned for a fault only then when we have checked the product, we will then give a full refund inc P&P. It is also the customer’s responsibility to arrange the return at the cost. All returns must be notified to us to be issued with a return number, failing to write the number on the package clearly, this may be refused.

11. A copy of these conditions covers every quotation which we submit to customers and they therefore form part of the business contract which we hope will result from the acceptance of the quotation. In the case of business concluded orally your attention will be drawn at the time to those conditions of which copies are available on request or for inspection in our offices. Any variation of these conditions in any document of the customer shall be effective and inapplicable unless specifically accepted in writing by us.

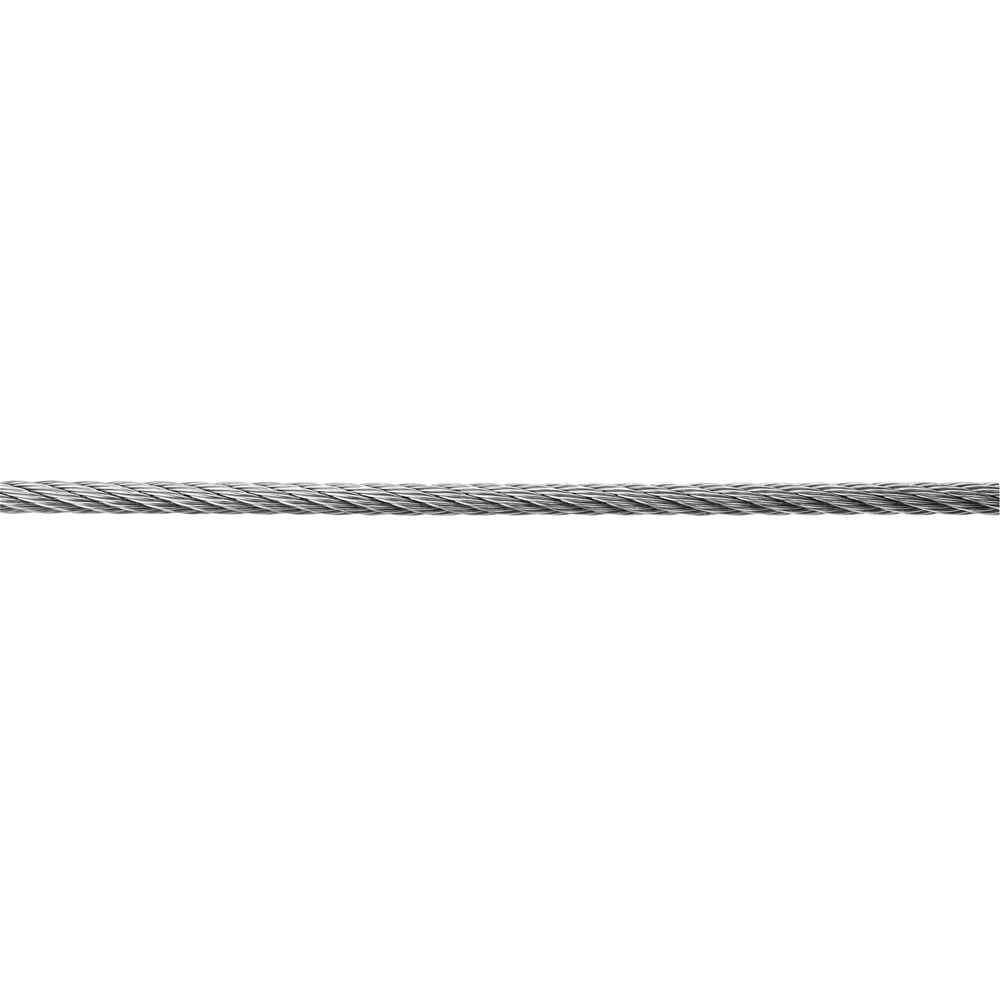

7x7 Type 316 stainless steel wire rope is primarily used for marine rigging and boat lifeline applications. It can also be used in architectural and landscaping applications and cable railing. The 7x7 composition makes this wire a medium stiffness and offers some flexibility when needed. The 7x7 construction is comprised of seven strands of individual wires in each strand.
