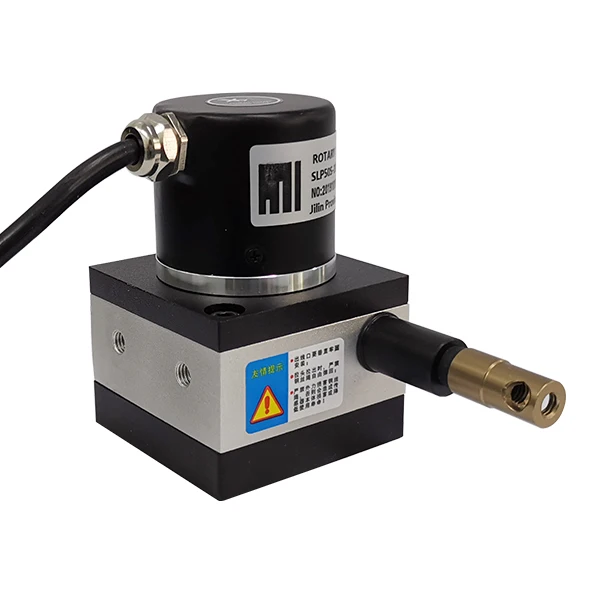

A draw-wire encoder is a linear measuring device that consists of a spring-wound cable reel with a rotary encoder mounted on the hub of the reel. The cable is attached to a load which draws out the wire as the reel turns causing the encoder to rotate and transmit the amount of rotation either as a voltage pulse stream (incremental encoder) or digital word (absolute encoder). Alternatively, output can also be provided as an analog linear voltage output or even as output from a resolver.

Draw wire encoders are also commonly known as draw string encoders or string pot encoders, after a previous configuration known as a string potentiometer. Draw wire encoders are compact, easy to mount, and highly portable. They are tough, making draw wire encoders good solutions for environments like shop floors, manufacturing lines, and off-road vehicles. Common applications include telescoping cranes and industrial equipment like forklifts, oil and gas drilling equipment, and wood- and stone-working machines.

Other alternative names for draw wire encoders in addition to draw string encoders include rope-length transmitters, rope-length transducers, cable-length transducers, and yo-yo encoders after the way the spring-wired drum pulls the wire back when it is removed from the load.

The basic operating principle of a draw wire encoder is simple; a rotary encoder is coupled to a spring loaded-reel using a mechanical coupling device, internal to the housing of the reel. A cable is wound around the reel, usually a metal braid type. The braided cable is anchored to the drum of the reel and wrapped many times around it. The opposite end of the cable passes through an exit port of the draw wire encoder housing and is terminated with an anchoring device such as a clevis or loop to attach to the moving mechanism being measured. As the cable is pulled, the drum is rotated and the linear motion is translated into rotary motion, at which point the draw wire encoder encodes the information into an electric signal. In simplistic terms, the concept of a draw wire encoder can be likened to a fishing reel.

However, unlike the fishing reel analogy the drum is spring loaded to eliminate cable slack and therefore ensure accurate length measurement. Depending upon the linear distance being measured and the diameter of the draw wire encoder drum and cable, a multi-turn absolute encoder is used to provide a true absolute measurement over the entire range of the linear motion. Draw wire encoder measurement lengths can range from a few inches to tens of feet.

Resolution: the smallest increment the system can measure. For draw wire encoders, this will be determined by the smallest increment of linear measurement desired

It is important to note that the accuracy and repeatability of the draw-wire encoder as a system is not the same as the accuracy and repeatability of the encoder itself. Mechanical issues introduced by improper installation and alignment can compromise both operation and measuring performance.Learn the difference between encoder resolution, encoder accuracy and repeatability here

Draw-wire encoders are largely mechanical devices, so they suffer from many of the same error sources and failure modes as typical mechanical components. Both wire hub and encoder have frictional components that require regular lubrication and maintenance. The wire stretches over time, causing measurement error to drift.

Pay attention to duty cycle when considering a draw-wire encoder. They provide a good solution for a measurement or two per day but would not be recommended for the use case that requires them to move back and forth repeatedly throughout a shift. Because the assemblies are dependent upon lubrication, very cold temperatures can introduce error.

Empower devices to communicate alone analog or digital channels using wire rope encoder from our wholesale partners. We are ready to meet your incremental or absolute encoding needs. We"ve got software and hardware wire rope encoder for streaming as well as HD, HDMI, IP, and IPTV types. So much of our world is digital and these are the very components responsible for harnessing those signals, invisible to the naked eye, as they pass from the analog world into our integrated digital surroundings.

We have you covered whether you are supporting fully digital systems or mechanical systems communicating with the digital world. Be sure to keep absolute encoders on hand to support stable systems and incremental wire rope encoder on hand to support responsive, rapid-change systems. We have linear encoders to support mechanical application such as inkjet printers, machining tools, and semiconductors. But we also stock HD, HDMI, IP, and IPTV encoders for data streaming scenarios. In our world, data needs to keep moving, and we"ve got the wire rope encoder to help.

Act now to stock up on our wholesale quantities and competitive prices. These wire rope encoder are ready to ship to you so that your inventory is always ready for repairs or for new smart builds, from city planners and engineers, to the home hobbyist, these electrical components are fundamental to a smart, integrated digital system, machinery and devices from small to massive, and the internet of things.

The draw-wire mechanics B80 can be used up to a measuring length of 3 meters. These draw-wire mechanics may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors

Keeping the track of latest happening of this domain, we offer the best quality of Cable Encoder. Clients based across the country can avail these from us at industry leading prices.

Unbeatable economic pricing in large quantities and a small footprint makes this tough draw wire encoders the preferred OEM customer selection. Well engineered mechanics in combination with POSITAL’s fully digital rotary encoders means these draw wires do not loose accuracy even after one million strokes. Available in 2.4 m [94.49 in] and 7.5 m [295.28 in] measuring lengths.read more...

Wire draw encoders consist of a wire draw mechanism and an encoder. The rotation of the drum, which is proportional to the length being measured, is recorded and output by an encoder. This facilitates positioning on linear measuring paths. SICK"s wire draw encoders support a large selection of interfaces and facilitate easy system integration for applications in challenging industrial settings. Different performance classes make it possible to select the ideal device for the application at hand.

The Celesco SE1 is the digital encoder version of our compact String Pot series. The SE1 is an economical and durable device that utilizes a flexible cable, a spring-loaded spool and an incremental optical encoder to detect and measure linear position.

Draw-wire sensors, also called string potentiometers, string encoders, or draw wire transducers, are compact devices used for accurately measuring an object’s position and speed along a linear system. They are a low-cost solution with a very wide range of industrial applications that consist of a simple assembly of three main components — a measuring wire, a spring-loaded drum or spool, and a sensor (potentiometer).

P3 America’s range of string potentiometers are capable of measuring displacements from 50 millimeters to 42 meters. They work without precise linear guidance and are perfect for robust handling in outdoor environments and rugged terrain. Browse from the range of draw-wire sensors listed here to find the ideal fit for your requirement. Whether you need a solution for offshore ports, mobile hydraulics, or any other industrial application, we have just the right string potentiometer model for you.

If you select “Type” and then select “Absolute Rotary Encoder” from the “Drop Down Menu”, you will now see only a small portion of the product offerings on the right side under the heading “Product Selector”

Using a wire attached to a drum, these products from various manufacturers, measure from 25mm to 40 meters. The flexible wire allows for linear measurements and an inventive range of measurements such as round the corner, circumference, angle and even 3D position.

SIKO panel meter, 3.5 digits (±1999), factory set for 0 to 500mm (1mm increments) matching SG and SGP 500mm wire actuators, Operating voltage 230Vac, 3 wire resistive input.

SIKO SGx family of wire actuators are universally applicable designs, with precise and safe cable guidance systems, robust Aluminium housing and strong mounting flange.

4-20mA, 2 wire interface via an instrument transformer for models using 10K pot. Internal start and end point adjustments using trimming potentiometers. M=with / X=without.

The RDP Electronics DWT series is a draw wire displacement transducer, 6 models from 600mm to 3500mm. Design for draw wire speed to 2m/s and life cycle of 1,000,000 full cycles.

Simple installation involves bolting down the housing and attaching the draw wire to the moving part, which is to be measured and adjusting span and zero. The output of the draw wire displacement transducer is proportional to the amount of cable pulled out of the unit. The plastic coated steel draw wire is tensioned by an internal spring pack, giving the unit an ability to measure around corners.

� MV58P Absolute encoder with Std encoder or PROFIBUS interface. Options on interface, cable length, steps per revolution, total number number of revolutions $call.

SIKO SG20 draw wire actuated encoder, 1250mm measuring length, with 10Kohm potentiometer, with integral cable, 2 metre electrical cable length, -10�C to +80�C, IP50 protection.

SIKO SG20 draw wire actuated encoder, 2000mm measuring length, with 4-20mA loop current, with integral cable, 2 metre electrical cable length, -10�C to +80�C, IP50 protection.

SIKO SG20 draw wire actuated encoder, 2000mm measuring length, with 0-10Vdc voltage, with integral cable, 2.0 metre electrical cable length, -10�C to +80�C, IP50 protection.

Firstmark Controls Series 6, measuring range 102mm, Cable tension option 5, standard 3 wire potentiometer, base: standard (60); pn 160015-1, flying leads of 1524 mm (60 inches)

Firstmark Controls Series 6, measuring range 343mm, Cable tension option 5, standard 3 wire potentiometer, base: standard (60); pn 160015-1, flying leads of 1524 mm (60 inches)

Firstmark Controls Series 6, measuring range 540mm, cable tension option 6, standard 3 wire potentiometer, base: standard (60); pn 160015-1, flying leads of 1524 mm (60 inches)

Firstmark Controls Series 6, measuring range 762mm, cable tension option 7, standard 3 wire potentiometer, base: standard (61); pn 160015-3, flying leads of 1524 mm (60 inches)

Firstmark Controls Series 6, measuring range 1080mm, cable tension option 7, standard 3 wire potentiometer, base: standard (62); pn 160015-5, flying leads of 1524 mm (60 inches)

This is SIKO"s smallest and most compact draw wire actuator. Its measuring length of 600 mm maximum is very long considering its small size. SG5 is supports the universal SIKO analogue interfaces.
