PRODUCT DESCRIPTION This is one of our best selling product. A kit of Catterpillar and Allison transmission provides steady and powerful output to enable the 250 rig can actually handle much heav...

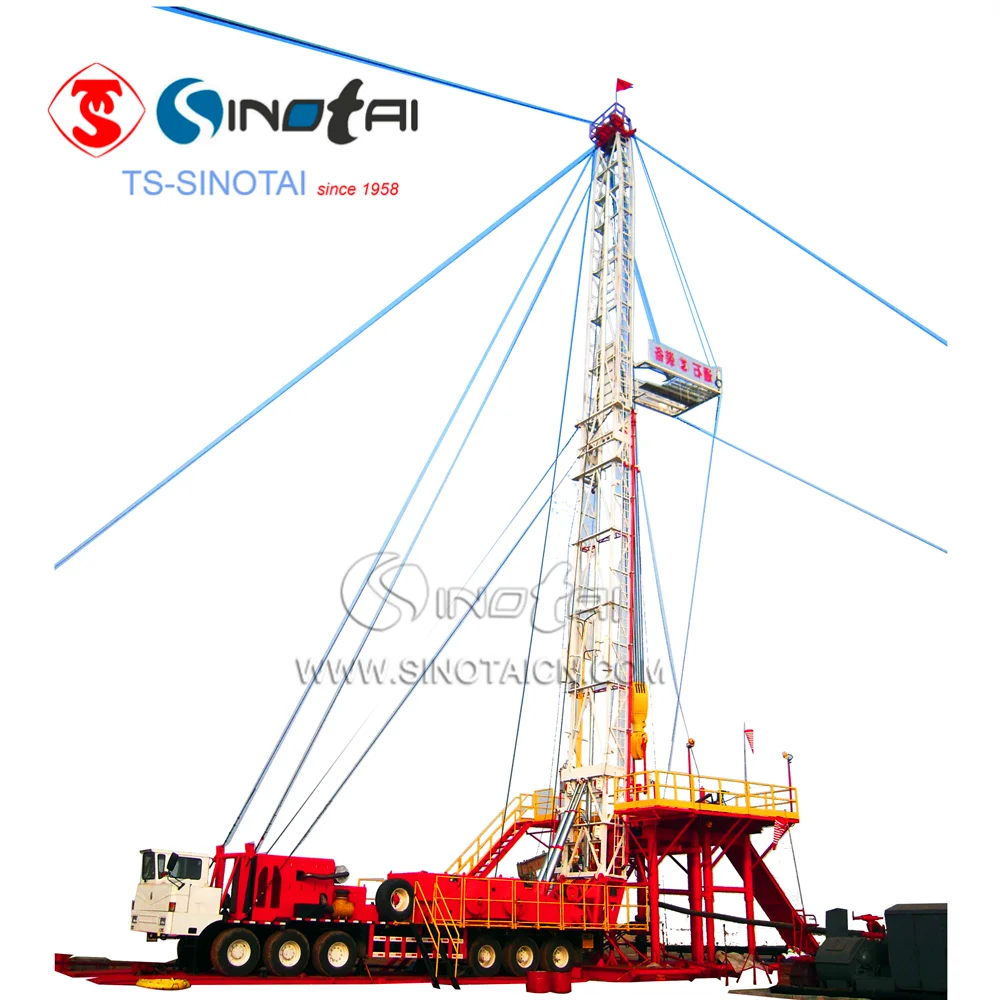

Product name: 5000m truck mounted drilling rig/workover rig Advantages: 1.truck mounted drilling rigs manufacturer 2.Approved API&ISO certificate 3.Max Nominal drilling depth:5...
PRODUCT DESCRIPTION XJ450 (80t) workover rig is capable of workover depth up to 4,500m and service depth up to 5,500m. Equipped with rotary table, swivel and drilling tools, it can also perform a...
This workover rig is mainly used for drilling service in 800m-4000m(4-1/2 DP) depth oil, water well and coal gas well.(1) The design and manufacturing for the rig stick to this principle that is...
The slant-well workover rigs* This kind of workover rigs are designed and manufactured in accordance with API Spec Q14F7k8C and technical standards of RP500,GB3826.1GB3836.2 GB7258,SY5202 as we...
The drilling rig is mainly used for Workover service of 5500m(2 7/8" oil tubing) deep of oil and water well,drilling 1500m(4 1/2" DP) deep oil-water and coal seam gas well,also used for deep...
350HP workover rig 350HP workover rigXJ350 workover rig is mainly used for shallow well workover, oil testing, fishing and pump check operations. It is equipped with a lifting system and a rotary...
PRODUCT DESCRIPTION The XJ350 workover rig is our best designed and developed product. It perfectly couples Caterpillar enginer with allison transmission to provide a steady energy output and exc...
PRODUCT DESCRIPTION As the pioneer of research and manufacture on Live Well Workover Rig in China, Tonghua Petro Machinery just announced the brand new Live Well Workover Rig----5th Generation wi...
PRODUCT DESCRIPTIONAs one of the best designed and manufacturered products of our workover rig series along with 50 year history of workover rig manufacture history, XJ750 adopts a complete U.S standa...
PRODUCT DESCRIPTION The XJ350 workover rig is our best designed and developed product. It perfectly couples Caterpillar enginer with allison transmission to provide a steady energy output and...
PRODUCT DESCRIPTION XJ450 (80t) workover rig is capable of workover depth up to 4,500m and service depth up to 5,500m. Equipped with rotary table, swivel and drilling tools, it can also perf...
The slant-well workover rigs * This kind of workover rigs are designed and manufactured in accordance with API Spec Q14F7k8C and technical standards of RP500,GB3826.1GB3836.2 GB7258,SY5202 as w...
The automatic operation equipment for minor workover is mainly composed of a wellhead operation device, hydraulic elevator, pipe and rod transmission and arrangement device and electro-hydraulic control system.
The device adopts the structural form of dispersing the functional modules and integrated installation on the workover rig: with the hydraulic tong, manipulator and anti splash snap device set on the derrick of the workover rig, which can expand and rotate, and the safety slip is installed above the BOP.
The device only needs to install safety slips, which realizes rapid installation and migration and shortens the auxiliary working time. The device has the function of moving back and forth, left and right, which is convenient to align the wellhead. The height of the hydraulic tong is adjustable and can adapt to the wellhead with different heights. Hoisting equipment and special transport vehicles are not required for the installation and removal of the device.
The main electric control box can be installed on the operation vehicle or integrated into the modular wellhead operation device. The make-up torque of various oil pipes is set on the touch screen to realize automatic make-up and break-down. Equipped with video monitoring, process prompt, safety alarm, etc. The control system has a perfect action interlocking function to ensure the safety and reliability of the workover operation process. All of the electric cabinets, sensors, connectors meet the requirement of Explosion-proof on field.
Founded in 1969, RG Petro-Machinery Group Co., Ltd. is the manufacturing base of Chinese major technical equipment and fast move petroleum drilling rigs. At present, it has 12 subsidiaries with 9 production and supporting branches. Its main products include 12 series of more than 200 varieties, such as truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, workover rigs, oilwell logging equipment, and integrated automatic well service equipment.RG Group has established a complete scientific and technical research and development system. It has academician workstation, post-doctoral scientific research workstation, and the National Petroleum Truck-mounted Equipment Standardization Work Department. It is responsible for hosting in drafting the national petroleum and petrochemical industry truck-mounted equipment standards. It has a nationally recognized enterprise technology center and metrology inspection laboratory, and has strong machinery fabrication and system integration capabilities. The company has passed ISO9001 and API Q1 international quality system and been authorized to use API 4F, 7K, and 8C monograms since 1990s.RG provides the oil and gas drilling equipment and all-round services according to the demands of the customers globally, including drilling services, equipment maintenance services, engineering services, inspection services, and equipment leasing etc. RG Petro-Machinery Group Co., Ltd. makes the great efforts to provide the first class equipment and services for the oil and gas industry of China and the world.
The power system on a drilling rig provides the power for the other main systems on the rig and other ancillary systems, such as electrical systems, pumps, etc. The system typically consists of a prime mover (the component of the power system that generates the raw power) and a means to transmit the raw power to the end-use components on the rig.
Historically, coal was used to generate the power for drilling rigs; however, modern drilling rigs use other sources of fuel. Typically, modern rigs are now run using an internal combustion engine with diesel or lease fuel. Diesel oil is a petroleum-based fuel that is a product of the distillation process. If the rig is running in a developed field, then the field may have a small on-site refinery that is used to distill the diesel fuel. If the rig is drilling an exploration, appraisal, or delineation well, then the fuel will need to be delivered from an external source and stored on-site.
Lease fuel is typically produced natural gas. As we have learned, natural gas is always produced along with crude oil. Again, if the rig is drilling wells in a developed field, then the field may use the natural gas or Natural Gas Liquids (NGL) to fuel the prime mover. This natural gas may be processed to remove NGLs if a gas plant is available on site; may need to burn these hydrocarbon liquids (possible sales product) if a gas plant is unavailable; or may burn the processed NGLs (butane).
In the mechanical transmission, power is generated with the prime mover and is transmitted to the end-use components by the application of chains and sprockets (similar to a bicycle), drive belts, drive shafts, etc. In a direct current (DC) electrical system, an internal combustion engine operates an electrical generator (in this case a DC generator) and the electrical energy is transmitted to the motors, electrical actuators, etc. Finally, in an alternating current (AC) electrical system, an internal combustion engine operates an electrical generator (in this case an AC generator) which is converted to DC with a silicon-controlled rectifier (SCR). AC-SCR power systems are the most widely used power systems on modern drilling rigs.
