pneumatic over hydraulic pump supplier

Air hydraulic pumps are applied in all kinds of contexts. Although some hydraulic pumps use the momentum of moving water to continue operation, all need an initial force to begin the process. Compressors, which can be automatic or hand operated, work by increasing the amount of air in an enclosed space. This in turn increases the air pressure, which creates a force that can be used directly or as a means of powering other tools and mechanical devices such as pumps.

Compressed air is a common source of movement in hydraulic systems as it is an economical and compact option that can be installed in most pre-existing pump configurations. Construction, transportation, automotive, military, marine, excavation and manufacturing industries utilize both heavy duty and light-duty variations of air hydraulic pumps. Cranes, motors, lifts, excavators and generators all make use of these devices as they enable workers to greatly multiply workforce.

Even a small hydraulic hand pump, which uses a foot or hand pump to compress the air needed to operate the pump, can convert as little as 4.5 pounds of pedal force into 100 pounds of load moving force. Electronic air compressor pumps demonstrate capacities much greater than this.

Like all hydraulic pumps, air pumps have the same initial components. A reservoir is needed to hold the hydraulic fluids, which are usually oil or water-based composites. Hoses or tubes attached to this reservoir allow the fluid to move from the holding tank to the hydraulic cylinder, which houses a piston mechanism and two valves. An intake valve allows the hydraulic fluid to enter and then closes to trap it. The discharge valve is where the high pressure stream is released.

In addition to the hydraulic cylinder that houses one end of the piston, air hydraulic pumps also have an attached air cylinder. Compressed air in this cylinder, or air compressor, acts upon the protruding end of the piston. The air cylinder, when empty, allows a spring mechanism in the hydraulic cylinder to push the piston out. This creates a vacuum that draws the fluid from the reservoir into the hydraulic cylinder. When air is pressurized in the air compressor it engages the piston, pushing it further into the hydraulic cylinder and compressing the fluids.

This pumping action continues until the pressure in the hydraulic cylinder is great enough to force the fluid out through the discharge check valve. In some cases this is attached to hoses and a nozzle with the pressurized stream being the useful component. Other uses utilize the energy of this stream to push, pull and lift heavy loads.

Enerpac Hydraulic Air Pumps provide high efficiency, proven reliability, and enhanced productivity. Choose from dozens of pneumatic hydraulic pump configurations; including single speed or 2 speed, low to high cycle, single-acting or double-acting, and various valve mount options.

Enerpac Air Over Hydraulic Pumps are rated for 10,000 psi (700 bar) and cover a multitude of different applications at locations where there’s access to a compressed air line. With so many options available for sale, there’s likely to be the ideal pump to power your application. Each offers the reassurance of trusted Enerpac high-quality, performance, and safety.

... alkitronic hydraulic pumps with electric or pneumatic drive provide fast operating speed, reliability, and safety. They are designed for permanent operation. Our hydraulic ...

Compressed air operated double diaphragm pumps for the Food and Beverage, Cosmetic and Trichological sectors. The pumps are certified ATEX, CE, MOCA, FDA Compliant.

Compressed air operated double diaphragm positive displacement pumps for the Food and Beverage, Cosmetic and Trichological sectors. The pumps are certified ATEX,

Compressed air operated double diaphragm positive displacement pumps for the Food and Beverage, Cosmetic and Trichological sectors. The pumps are certified ATEX, CE, MOCA, FDA Compliant.

These mini-pumps are driven by an air-powered motor and can be connected to any supply source of compressed air. These compact low-cost pumps can operate all single-acting or double-acting ...

Like all the pumps of the HP Series, it is suitable for any hydraulic application which require very high hydraulic output pressures and a moderate and controllable oil flow, to ensure ...

The HP-AP pump, like all HP Series pumps, can be installed in any hydraulic applications which requires high working pressures and moderate and controllable oil flow. Our HP Series air-hydraulic ...

Occupying a limited workspace, the portable P801 pump runs on compressed air that has a pressure capacity ranging from 2 to 7 bar. It is commonly utilized in the supply of systems that ...

Precision-matched cylinder and pump set for wide range of applications. Four styles of cylinders within the CPS/RPS Series with each set featuring single or two-speed hydraulic hand pumps. ...

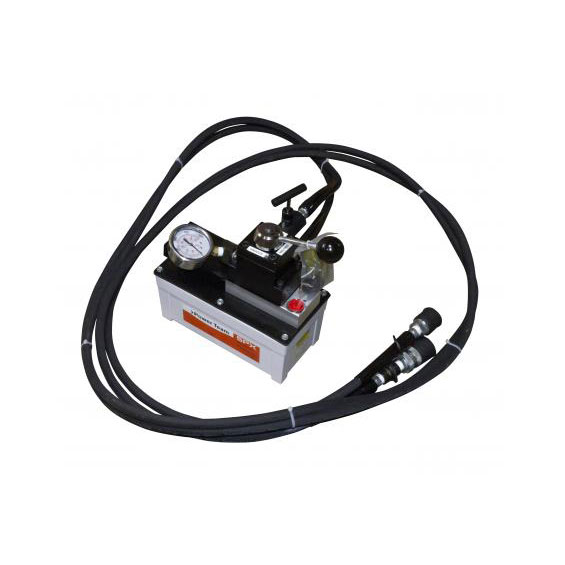

... lightweight and portable the Power Team PA6D series pumps are single-speed pumps for driving double-acting cylinders. The PA6D series pumps operate at 40-100 psi (3-8 bar) shop air ...

A two-speed pump, the Power Team PA60 series pumps are designed for rapid oil delivery at low pressure to quickly advance cylinder or tool. Equipped with air pressure regulator, air ...

... to access. For these applications ITH developed the pneumatic pump Aero-MAX series and Travel-MAX. All the pumps can be used with standard air pressure systems. Typical ...

... electric power supplies can be difficult to access. For these applications ITH developed the pneumatic pump Aero-MAX series and Travel-MAX. All ITH pneumatic pumps ...

Double-acting, single-stage air-powered compact pump. Standard with a 3/8” NPT female thread and compressed air connector. Excluding coupler, hoses and pressure gauge.

The WL is a series of air-hydraulic pumps manufactured by Werner Weitner GmbH. Their aluminum framework operates in a single speed, and enables a pressure of up to 700bar with an air ...

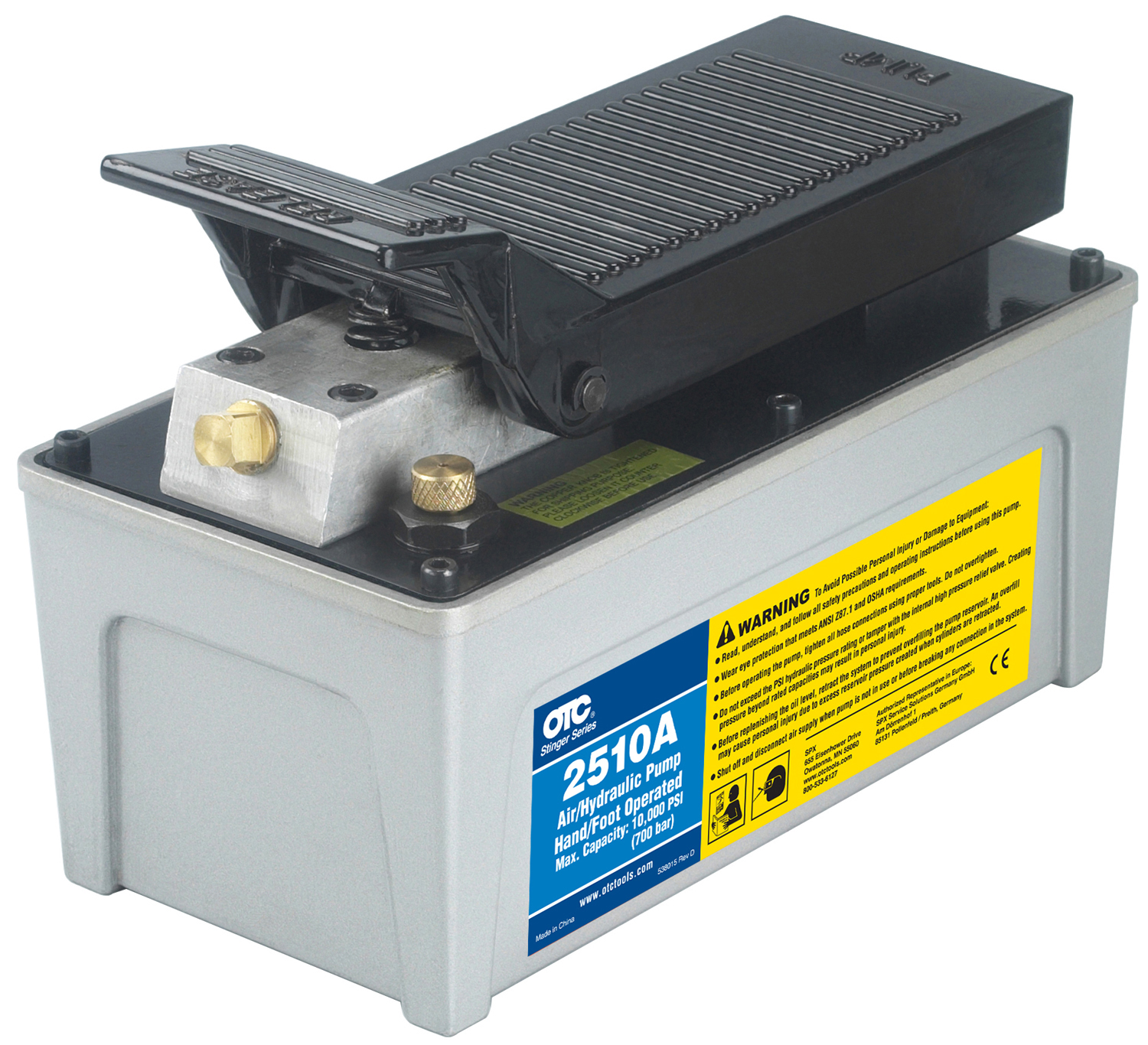

Ideal all-around power source develops 10,000 PSI at 100 PSI air. 2-stage release mechanism; internal relief valve. Pump, hold, or release load with pedal control.

All Air Hydraulic Pumps & Hoses 1 Quart 1/2 Gallon 10100 10101 10102 10103 10104 10105 10106 10107 10109 10200 10201 10202 10204 10205 10206 10207 10208 10209 10211 10212 10213 10220 10221 10222 10223 10224 10227 10228 10229 10230 10231 10233 10234 10235 10236 10237 10238 10240 10241 10242 10243 10245 10246 10247 10500 10501 10501C 10508 10508HC 10518 10590 10591 10592 10593 10593C 10594 10595 10595C 10601 10601H 10601K 10604 10605 10610 10611 10820 10821 10822 10823 10824 10825 10826 10827 10828 10829 10830 10832 10837 10838 10839 10841 10842 10843 10844 10845 10847 10848 10875 10875C 10876 10876C 10877 10877C 10895 10896 2 2 gallon 2.5 2.5 Quart 3.5 3.5 Quart 40801 40804 40805 5 5 Quart 8 OTR 8.1 Air Hydraulic Pumps 8.6 OTR Bead Breakers Air Hydraulic Air Pressure Reducer Air Reducer Aluminum Bead Breaker AME bead breaker Bead Breaker Kit bead breaking Brand_ESCO Combi Bead Breaker Coupler Dual Agricultural Bead Breaker ESCO Gallon_2 Hydraulic Hydraulic Coupler Hydraulic Hose Hydraulic Hose Kit hydraulic pump Manual Manual Pump Maxi Bead Breaker Modified Combi Bead Breaker OTR OTR Bead Breaker Kit OTR Giant Bead Breaker OTR Giant Tire Bead Breaker Pod Pro Series Quart_2.5 Quart_3.5 Quart_5 Talon Bead Breaker Type_Combi Bead Breaker Whip Hose Yellow Jackit

Air hydraulic pumps are hydraulic power units that use compressed air to activate a pump mechanism, creating useful energy from the pressurization of various liquids. Also known as pneumatic hydraulic pumps, these devices are used in a number of industries to aid in transporting materials and lifting heavy loads with minimal initial force.

Air hydraulic pumps are applied in all kinds of contexts. Although some hydraulic pumps use the momentum of moving water to continue operation, all need an initial force to begin the process. Compressors, which can be automatic or hand operated, work by increasing the amount of air in an enclosed space. This, in turn, increases the air pressure, which creates a force that can be used directly or to power other tools and mechanical devices such as pumps. Compressed air is a common source of movement in hydraulic systems as it is an economical and compact option that can be installed in most pre-existing pump configurations. Construction, transportation, automotive, military, marine, excavation, and manufacturing industries utilize both heavy duty and light-duty variations of air hydraulic pumps. Cranes, motors, lifts, excavators, and generators all make use of these devices as they enable workers to greatly multiply the workforce. Even a small hydraulic hand pump, which uses a foot or hand pump to compress the air needed to operate the pump, can convert as little as 4.5 pounds of pedal force into 100 pounds of load moving force. Electronic air compressor pumps demonstrate capacities much greater than this.

Like all hydraulic pumps, air pumps have the same initial components. A reservoir is needed to hold the hydraulic fluids, which are usually oil or water-based composites. Hoses or tubes attached to this reservoir allow the fluid to move from the holding tank to the hydraulic cylinder, which houses a piston mechanism and two valves. An intake valve allows the hydraulic fluid to enter and then closes to trap it. The discharge valve is where the high pressure stream is released. In addition to the hydraulic cylinder that houses one end of the piston, air hydraulic pumps also have an attached air cylinder. Compressed air in this cylinder, or air compressor, acts upon the protruding end of the piston. The air cylinder, when empty, allows a spring mechanism in the hydraulic cylinder to push the piston out. This creates a vacuum that draws the fluid into the hydraulic cylinder from the reservoir. When air is pressurized in the air compressor, it engages the piston, pushing it further into the hydraulic cylinder and compressing the fluids. This pumping action continues until the pressure in the hydraulic cylinder is great enough to force the fluid out through the discharge check valve. In some cases, this is attached to hoses and a nozzle, with the pressurized stream being the useful component. Other uses utilize the energy of this stream to push, pull and lift heavy loads.

Pistons with O-ring seals operate in, fiberglass wrapped cylinders. The cylinder diameter is constant for a particular pump series. The driving medium pushes the piston down on the compression stroke and lifts it on the suction stroke (the M series has a spring return). No drive air lubricant is required as the piston is pre-lubricated during assembly.

In the hydraulic section, the drive piston connects to the hydraulic plunger/piston. Hydraulic pistons have different sizes depending on their nominal ratio. The higher ratio pumps can achieve higher pressures, but have smaller displacements, which translates to less flow per stroke.

During the down stroke, the inlet check valve keeps the liquid in the pump from flowing back into the suction line while it is compressed by the plunger. On the return or suction stroke, fresh liquid is drawn in through the inlet check valve, while the outlet check valve closes.

These check valves control the flow of liquid through the hydraulic section. They are spring-loaded and have a very low cracking pressure, which allows maximum flow during suction. Inlet check valves are closed by the hydraulic fluid pressure on downstrokes. At the same time, the outlet check valves open when the hydraulic pressure in the pump exceeds the pressure in the system after the pump.

A hydraulic seal is one of the few parts that wear out. Basically, it prevents fluid from flowing into the actuator while the hydraulic piston is moving back and forth. Seal specifications are determined by the fluid, its pressure and temperature. Most Haskel pumps can be operated without contamination by use of a vent or distance piece between the pump section and the air drive.

EngMatTec"s Air operated hydraulic piston pumps use the principle of intensification to generate up to 10,000 psi of hydraulic oil pressure with only 100 psi of compressed air.

Supplied with a 6 foot 6 inch (80") long extra heavy duty jacking hose rated to 17,600 psi. the Pump is assembled with a bigger 2.5 quart Oil Storage tank for Lager Tools and Attachments.

This 10,000 psi Pump and 6 foot long 17,600 psi Hose set is just what you"ll need on those Tough and Demanding Jobs that will need more oil to Push Harder, Pull Longer or Bend Further.

Eagle Pro Industrial Tools, Inc. manufactures hydraulic tools including cylinders, pumps, and jacks for industrial purposes. All of their hydraulic products are engineered and made to meet ISO 9001:2008 standards. Through a quality assurance program including consistent audits of administration, management, manufacturing, and production control results in a reliable, dependable, high-quality hydraulic products that stand the test of time.

Since 1996 Eagle Pro has had the vision to provide complete hydraulic tools. This is reflected in their mission to focus on their customers" needs by providing excellent hydraulic solutions and services in order to consistently provide maximum value. They supply high-quality hydraulic cylinders, pumps, and jacks, and provide excellent customer service.

The Eagle Pro ED series Double Acting General Purpose Hydraulic Cylinder produces a quick, controlled piston contraction allowing for a double acting operation.  A built-in safety valve prevents accidental-over pressurization.  Most models include collar, piston threads, and base mounting holes to make fixturing a simple task. Piston jamming and mushrooming is prevented by the cylinder’s hardened, and E-coated snap-in saddle. The ED series enhances durability with a hardened and chromed piston that reduces wear and corrosion.  A durable, anti-corrosive finish is added using an environmentally friendly coating process.  The ED series comes with a rugged, EAB-201A female coupler, complete with heavy-duty dust covers, preventing dirt and debris from entering the hydraulic system The ED series complies with ASME B30.1 standards.

Eagle Pro"s EDH series Double-Acting, Hollow-Piston Hydraulic Cylinder incorporates a hollow piston design that allows both pushing and pulling forces.  The construction of high strength alloy steel maximizes durability along with the EDH series’ double acting operation ensures fast and controlled piston reaction time. A safety valve prevents over-pressurization. Eagle Pro"s EDH series comes with a rugged female coupler and a heavy-duty dust cover which keeps dirt and debris from entering the system.

The hardened and chromed piston minimizes wear and corrosion damage.  The incorporation of base mounting holes enables easy fixturing.  An environmentally friendly coating process provides a highly durable finish.  The EDX Series comes with a rugged EAB-201A female coupler complete with heavy-duty dust covers.

Eagle Pro"s ESX Single Acting High Tonnage Hydraulic Cylinder features high strength alloy steel aimed at maximizing durability.  The hardened and chromed piston reduces wear and corrosion damage.  The inclusion of base mounting holes enables easy fixturing.  An environmentally friendly coating process produces a finish that protects against corrosion. The ESX features a single acting, load return operation.  Additionally, optional tilt saddles are available.

The Eagle Pro EL series Single-Acting Cylinder with Locking Collars includes an alloy steel lock nut for mechanical load holding and is constructed of a high strength alloy steel to maximize durability.  The hardened chrome piston reduces damage caused from wear and corrosion.  The over flow port functions as a stroke limiter. The EL series also includes hardened grooved replaceable saddles.  Composite bearings prevent metal-to-metal contact.  Quick reaction times are obtained through heavy-duty straight pull return springs.

Eagle Pro"s ES series Single Acting General Purpose Hydraulic Cylinder redefines durability for the harshest of industrial environments. With its high strength alloy steel construction and hardened chromed piston, it ensures superior product life by reducing wear and corrosion. Heavy-duty, straight pull return springs provide fast retraction with greater flexibility. The ES series comes with collar, multiple piston threads, and base mounting holes. Hardened and E-coated snap-in type saddle prevents piston jamming and mushrooming, practically eliminating downtime.

The Eagle Pro ESL series Low Profile Pancake Style Hydraulic Cylinder features a low-profile flat design and is an optimal choice for tight spaces.  The hardened and chromed high strength alloy steel increases durability by reducing wear and corrosion.  The grooved piston end does not require a saddle and the inclusion of mounting holes permits easy mounting.  Retraction time is quick thanks to the heavy duty, straight pull return springs.

The EPA series Dual Speed Hydraulic Hand Pump features valve blocks that are machined from a single piece of high strength aircraft grade aluminum and high capacity reservoirs made from alloy steel that maximizes durability.  These hand pumps are compact and easy to carry around the job site. To get the job done faster, these powerful dual speed pumps offer some of the best flow rates in the industry. All of the EPA series hydraulic hand pumps feature an internal safety valve to prevent system damage.

Eagle Pro"s EPB series of Electric Hydraulic Pumps feature various flow rates from 16 in3/min, 39in3/min, 60in3/min, and 100in3/min. and industrial strength TEFC (totally enclosed, fan cooled) induction motors that provide performance and reliability when needed.  All single phase EPB pumps come standard with a low voltage remote control.  The EPB series pumps start under full load. Standard reservoirs are available in 1.3 gallons, 2.1 gallons, or 5.3 gallons.  If the application requires a larger reservoir, large reservoir bolt on kits are available up to 20 gallons depending on the pump model.   Roll cage kits and an externally adjustable valve pressure regulator are available to increase the protection and performance of the pump.

The Eagle Pro EPC series Air Over Hydraulic Pumps features an efficient pump and heavy-duty air motor design.  The risk of contamination damage is minimized as pumps feature both air and oil filters. Several types of reservoir materials are available to suit each application.  The built in air exhaust muffler quiets operation.  All Eagle Pro EPC series air over hydraulic pumps features an internal load limiting valve to prevent system damage

Eagle Pro"s Gasoline Powered Hydraulic Pumps allow you to use hydraulics as a work force multiplier in even the most remote locations. Subaru’s EA Series engines are engineered and built specifically for demanding applications and extreme conditions encountered by high force hydraulic equipment.  The EA series offers easier starts, quieter operation, and more power than anything in its class.  Featuring advanced chain-driven overhead cam technology and their impressive three-year warranty, it’s an easy choice for demanding work environments.

The Eagle Pro ETJ Series Hydraulic Toe Jack is designed for lifting loads with very low minimum (foot) clearance or high (head) clearance.  The ETJ series includes a built in safety valve that provides overload protection.  The five and ten-ton models have an added spring assisted return and over travel protection feature.  Strength is assured through the incorporation of a forged base and cylinder.  The Eagle Pro ETJ Series complies with ANSI/ASME B30.1 and CE/GS standards.
