We pursue the administration tenet of "Quality is exceptional, Assistance is supreme, Reputation is first", and will sincerely create and share success with all clients for Hydraulic Pump Unit For Sale, Vickers Hydraulic Pump V210, Hydraulic Vane Pump Yuken Make, Trust us and you will gain more. Please feel free to contact us for more information, we assure you of our best attention at all times.

ABT Series Servo Pump is high performance servo hydraulic system special oil pump. It is researched and developed together by three party- Ningbo Vicks Hydraulic Co., Ltd. American Albert Fluid Power Co., Ltd. Zhejiang University Mechanical Control Engineering Research Institute. The core components are imported from America. We have the proprietary intellectual property hydraulic systems of rubber and plastic machines, shoes machines, forging and press machines, bending machines and shearing machines.

2.se outside leakage and leakage volume control designation low the oil temperature obviously. Based on the hydraulic components leakage volume, can adjust the oil leakage smartly, the pump pressure pulse is small at high pressure and low speed, the injection finished products will be more higher accuracy.

3.With the coordination of high pressure oil and vice spring structure, can make the pump run normally at low speed, can fit low and high speed shift, high and low pressure speed shift, right and left rotation shift etc working status of servo hydraulic system perfectly.

1.Pump housing design with Rc3/8 leaked oil port, the leaking oil must through the port back to oilbox, do not blocking, or will cause the shaft seal damage.

2.Following photos instruction, Leakage of oil pipeline must be upward arrangement, make the sliding bearing in the pump shaft center in the leaked oil dip full lubrication.

● Proper fluid condition is essential for long and satisficatory life of hydraulic components and systems. The filtration rating should not be lower than 25μm. Filter of 70-150μm on the inlet port is recommended and its rated flow should not be lower than 200% of pump’s.

● Horizontal mounting is recommended to maintain necessary case fluid level. Concentricity of shafts between pump and motor is important to pump life and should be within ∅0.1mm. It is better to use flexible coupling to avoid harmful effects.

● The oil pump allows the inhalation vacuum as 110mm column of mercury. Installation should near fuel tank, inhaling the height can not be big in 500mm.

● Please notice the seal of flange at port connections, ports and absorb pipeline has to be sealed strictly, to prevent air leakage. If not it will cause the noise and vibration of system, also will make foam, to low the life of pump.

● Before starting pump, please check up if the inlet and outlet have been correctly connected and the rotation of the pump is inline with the nameplate. (CW without notice).

● When initially starting the pump after long-time unused, removing all trapped air from the system can be accomplished by loosening flange or connections.

● The cartridge design of ABT series servo pumps offers fast and efficient field service ability, when replacing the cartridge, seals inside the pump should be checked to avoid them crimping, when tighting the fastening screws, they should be treated with even force in diagonal direction.

Our primary target will be to provide our clients a serious and responsible small business relationship, supplying personalized attention to all of them for Factory Free sample ABT Series Servo Pump Single Hydraulic Pump for Gabon Factories, The product will supply to all over the world, such as: New Zealand, Armenia, Zimbabwe, Satisfaction and good credit to every customer is our priority. We focus on every detail of order processing for customers till they have received safe and sound solutions with good logistics service and economical cost. Depending on this, our solutions are sold very well in the countries in Africa, the Mid-East and Southeast Asia.

Constant pumps are generally used in servo-hydraulic systems. Baumüller can work with any of the standard pump manufacturers on request. Numerous manufacturers have their own series for variable-speed operation in their product range that exactly meets the requirements of servo-hydraulic systems and is designed for high accelerations. Compared to an uncontrolled hydraulic system with a standard motor, the pump will be smaller because decoupling from the mains is a frequent occurrence. This allows a higher speed and smaller pump dimensions.

As a special feature, Baumüller offers three different options for the connection between the pump and motor. In the Standard Line, the attachment is made using the conventional solution of coupling and pump support. This tried-and-tested option can be achieved with a standard motor shaft and motor flange and is flexible due to the separate components. The second development stage, the Advanced Line, describes the direct attachment of the pump on the motor via internal toothing. Here there is no need for a pump support and coupling, so the system is more compact and robust. Omitting the pump support as a resonating body also reduces the noise impact. In the third stage, the Performance Line, the hydraulic fluid is additionally used for intelligent circulating oil lubrication. For this purpose, connections were added not only to the motor but also to the constant pump, allowing the leakage flow of the pump to be used for the permanent lubrication of the toothing. This eliminates an otherwise necessary grease lubrication of the internal toothing, which would be due every 3,000 operating hours on average, also rendering the system particularly robust. Baumüller thus offers a solution registered for patent, which leads to significantly reduced service costs in operation.

In a conventional hydraulic system, a fixed-speed motor drives the pump that circulates the hydraulic oil from the reservoir to the hydraulic cylinder. To keep the oil circulating, the pump needs to run constantly, consuming energy even when the actuator is stationary.

Pumps in hydraulic systems are commonly driven by induction motors, which are inherently less efficient than the permanent-magnet motors used in servo designs. Induction motors have to draw current in order to generate the magnetic field required to get the rotor to turn. Their efficiency also decreases when they are run below their rated speed.

Of course, if you’re reading this article, you probably know about these problems firsthand. What you need is a solution. Hybrid electrohydraulic systems leverage the power density of hydraulics with the responsiveness and energy savings of electromechanical technology. Unlike the induction motors used in fixed-speed pumps, the permanent magnet motors used in servo pumps operate synchronously and without any latency. Even better, they run efficiently across a range of speeds. “With a servo pump, you don’t have to have continuously circulating hydraulic fluid,” says Kerns. “Basically, the motor comes on and runs when you need pressure, and with a much faster response time.”

This means that you’re not paying to operate the pump full speed when the hydraulic actuator is stationary. Indeed, analysis shows that a conventional hydraulic system will cost considerably more over time than a hybrid version using a servo pump (see figure 2).

The instant response delivered by servo motors enables the actuator to operate much more quickly and deterministically, making it a good fit for applications like punch presses. The solutions also involve less complex systems with smaller footprints while incorporating value-added devices like smart drives with real-time diagnostic capabilities (see figure 3). In the case of applications that would normally place the reservoir at a distance from the hydraulic cylinder, the use of a servo pump at the actuator can eliminate the need for long hydraulic hoses that are prone to leaks or breakage.

Applications like injection molding are perfectly positioned to benefit from the technology. Rubber injection molding processes, for example, require the pressure to be applied and then maintained at a set level for an extended period of time while the rubber fills all nooks and crannies of the mold. In the case of a system run by a fixed-speed pump, the motor would be running the entire time, consuming power and generating heat, even though it is only maintaining pressure. With a servo pump, the holding torque of the motor is sufficient to generate the required pressure. “Because you’re using permanent-magnet servo motors, there’s virtually no voltage on the motor,” says Raymond Seifert, director of application engineering, Baumueller Nuermont Corp. (Windsor, CT). ”As a result, even though you might have to maintain a holding current, the actual power that you’re using is minimal.”

Indeed, a calculation of energy consumption and cost for this application based on the duty cycle of the motor showed a clear advantage for the servo-driven design. “The customer was happy with the prototype and could justify the cost,” Seifert says. “They are now looking at retrofitting more machines.”

A new hybrid electrohydraulic press using a dual-pump design has been developed as an off-shoot of the servo-motor-driven pump technology. The approach allows bi-directional pumping of the hydraulic fluid, enabling the customer to reduce the size of the existing hydraulic press reservoir to nothing more than an accumulator in the hydraulic circuit. Fewer components and less oil means a smaller footprint, lower cost for the system, better products, less chance of leakage, and less money spent on both purchase and disposal of the hydraulic oil.

Of course, shrinking the volume of oil does increase the importance of thermal management. The smaller volume of oil means that it heats up more quickly. When the temperatures get too high, the pump can fail. To guard against this, the addition of auxiliary cooling in the hydraulic circuit may be necessary to ensure temperatures remain under control.

Servo pumps deliver benefits beyond just cost savings. The level of control provided by closed-loop feedback leads to more precise motion. In contrast, conventional hydraulic systems may not even use a drive, let alone feedback. They may simply use a motor with a simple on/off switch that runs at constant speed. The closed loop feedback of a servo pump equips the system to deliver the exact torque or speed required for the application, and do it instantly.

“Even if you use a drive with a standard induction motor, you still have an element of delay in getting that system up to a certain pressure,” says Kerns. “More often than not, you’ll see a hydraulic system that doesn’t even have a digital feedback loop, just a regular analog loop. The big benefits of the servo motor are the response time and the fact that you’re able to run those motors up to really, really high RPMs to get to where you need to be much quicker.”

This level of fine control can benefit applications like metalforming. When metal is deformed into a shape, it has to be slightly over bent so that it will assume the correct form after recoil. For best results, full force should only be applied in the last millimeter or two of motion. Servo pumps enable much more accurate control of the motion of the hydraulic actuator, creating better quality parts.

Although system cost and performance are important, the modern industrial environment imposes other challenges to machine design and operation. Particularly if you are involved in industries like automotive manufacturing, you face growing regulation for working conditions. Here, too, servo motors provide superior solution to conventional fixed-speed pump designs by virtue of their whisper-quiet performance. “When customers take the risk and make the change, their jaws just drop with how quiet their new machine is,” says Swinford. That performance is not just good for end-users but for OEMs, he notes. “I have one client who has kept their factory full for the last three years because their end users are so excited by the noise reduction that they keep ordering new machines just to replace the ones in the field. Most of them wind up having flashing lights on the machine to let customers know that the power’s on.”

As intriguing as the technology may be, it’s important to remember that the performance of the system is only as good as the design approach. “It’s not the kind of thing that you just kind of slap together,” Swinford says, citing limiting factors like minimum and maximum pump speed, pressure rises, etc. “The best thing to do is to start with a clean piece of paper. Sure, you can just add something onto what you have and make it work, but it’s not going to be as competitive in the global marketplaces as starting over.”

Everyone interviewed for this article agreed that the adoption of the technology is still in the early stages. Far from tempting manufacturers to wait until later to consider the technology, that should spur OEMs and end-users alike to explore the use of servo pumps. Taking action at the beginning of a market evolution is the way to derive maximum benefit from the conversion. Designing servo pumps into your next hydraulic system will position your organization to gain a significant competitive advantage over organizations working with the incumbent technology.

5.Host machine adopt oil cylinder on bottom type structure,hydraulic load, hydraulic clamping specimen,tensile jaws fixed on cross beam, easily controlling of install and release

7.Adopt ATOS digital servo proportional valve, used safely, closed loop feedback,reset,good response,digital electronic amplifier factory default, digital control flow/pressure/position；

TTSHC1000 Servo-hydraulic Compression Testing Machine is ideal for high-capacity compression and bend/flex tests. These frames feature, free positioning upper platen so users can quickly change clearance between platens instantly, because of this, the total height of machine could be much lower than the frames which use oil cylinder to adjust the test space

We carry a large selection of Bosch Rexroth hydraulics pumps, motors & more. If you can’t find the Rexroth Pump you’re looking for or you need a Bosch Rexroth hydraulics pump repair, contact us today!

We can supply what you need or repair what you have. Before purchasing, there may be a good chance that your current Bosch Rexroth hydraulic pump or motor can be repaired. Bosch Rexroth hydraulics repairs and motor repairs come with our two year warranty.

When purchasing, consider remanufactured Bosch Rexroth hydraulics or after-market hydraulic units. They can get you back up and running for less than the cost of a new Bosch Rexroth hydraulic unit. We will give you a free quote so you can compare costs for a new, repaired or re-manufactured Bosch Rexroth unit, saving you money without compromising the results of your Bosch Rexroth hydraulic unit.

In 1795, the Rexroth family established an iron forge in Spessart, Germany. However, it wasn’t until 1952 that they began producing standardized hydraulic components and hydraulics. In 1953 they invented the first industrialized gear pump for mobile machines. Later, in 1972, Rexroth launched the first hydraulic servo valve onto the market and became a wholly-owned subsidiary of Mannesmann AG in 1975. They developed the world’s first maintenance-free AC servomotor in 1979, revolutionizing the mechanical engineering industry. Throughout the 90s Rexroth continued to grow and revolutionize the industry, launching inventions used in a variety of industries. Mannesmann Rexroth AG and Bosch Automation Technology merged to form Bosch Rexroth in 2001 and today, Bosch Rexroth is one of the leading specialists in drive and control technologies.

Axial piston pumps: intended for the medium and high-pressure range and come in a variety of designs, performance ranges, and adjustment options for mobile, stationary and industrial applications.

Bosch Rexroth hydraulic motors are known for their reliability, long life cycles, low noise emissions, as well as high efficiency, and cost-effectiveness. The range is available in swashplate or bent axis designs which are used in medium and high-pressure applications. They have several models including:

Bosch Rexroth hydraulics offers a range of hydraulic “on/off” valves including isolator valves, directional valves, pressure valves, flow control, and throttle valves, and directional cartridge valves.

Directional valves:control the flow and direction of movement or rotation of hydraulic actuators which include directional seat or spool valves, direct operated or pilot operated valves.

In control engineering a servomechanism, usually shortened to servo, is an automatic device that uses error-sensing negative feedback to correct the action of a mechanism.encoder or other position feedback mechanism to ensure the output is achieving the desired effect.

The term correctly applies only to systems where the feedback or error-correction signals help control mechanical position, speed, attitude or any other measurable variables.power window control is not a servomechanism, as there is no automatic feedback that controls position—the operator does this by observation. By contrast a car"s cruise control uses closed-loop feedback, which classifies it as a servomechanism.

Globe control valve with pneumatic actuator and "positioner". This is a servo which ensures the valve opens to the desired position regardless of friction

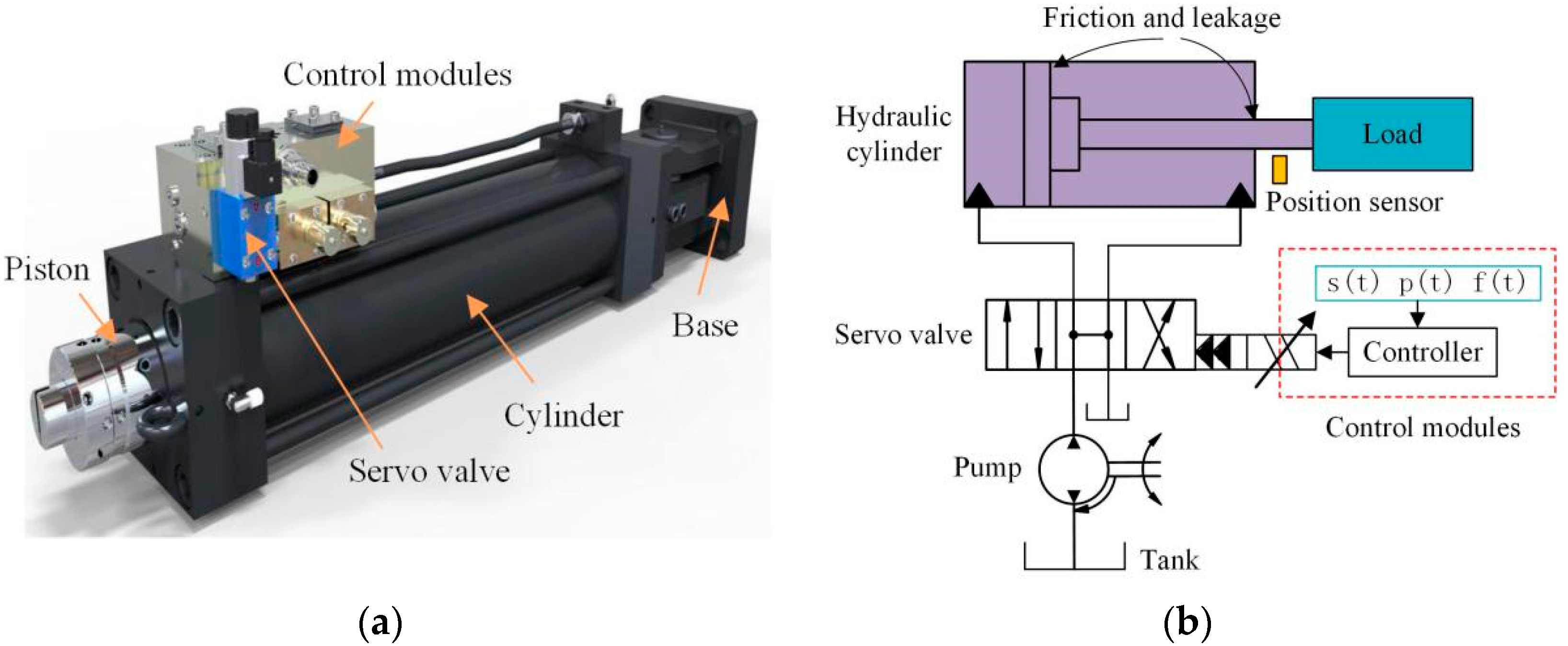

A common type of servo provides position control. Commonly, servos are electric, hydraulic, or pneumatic. They operate on the principle of negative feedback, where the control input is compared to the actual position of the mechanical system as measured by some type of transducer at the output. Any difference between the actual and wanted values (an "error signal") is amplified (and converted) and used to drive the system in the direction necessary to reduce or eliminate the error. This procedure is one widely used application of control theory. Typical servos can give a rotary (angular) or linear output.

Speed control via a governor is another type of servomechanism. The steam engine uses mechanical governors; another early application was to govern the speed of water wheels. Prior to World War II the constant speed propeller was developed to control engine speed for maneuvering aircraft. Fuel controls for gas turbine engines employ either hydromechanical or electronic governing.

Positioning servomechanisms were first used in military fire-control and marine navigation equipment. Today servomechanisms are used in automatic machine tools, satellite-tracking antennas, remote control airplanes, automatic navigation systems on boats and planes, and antiaircraft-gun control systems. Other examples are fly-by-wire systems in aircraft which use servos to actuate the aircraft"s control surfaces, and radio-controlled models which use RC servos for the same purpose. Many autofocus cameras also use a servomechanism to accurately move the lens. A hard disk drive has a magnetic servo system with sub-micrometer positioning accuracy. In industrial machines, servos are used to perform complex motion, in many applications.

A rotary encoder or a potentiometer to form a servomechanism. This assembly may in turn form part of another servomechanism. A potentiometer provides a simple analog signal to indicate position, while an encoder provides position and usually speed feedback, which by the use of a PID controller allow more precise control of position and thus faster achievement of a stable position (for a given motor power). Potentiometers are subject to drift when the temperature changes whereas encoders are more stable and accurate.

Servomotors are used for both high-end and low-end applications. On the high end are precision industrial components that use a rotary encoder. On the low end are inexpensive radio control servos (RC servos) used in radio-controlled models which use a free-running motor and a simple potentiometer position sensor with an embedded controller. The term servomotor generally refers to a high-end industrial component while the term servo is most often used to describe the inexpensive devices that employ a potentiometer. Stepper motors are not considered to be servomotors, although they too are used to construct larger servomechanisms. Stepper motors have inherent angular positioning, owing to their construction, and this is generally used in an open-loop manner without feedback. They are generally used for medium-precision applications.

RC servos are used to provide actuation for various mechanical systems such as the steering of a car, the control surfaces on a plane, or the rudder of a boat. Due to their affordability, reliability, and simplicity of control by microprocessors, they are often used in small-scale robotics applications. A standard RC receiver (or a microcontroller) sends pulse-width modulation (PWM) signals to the servo. The electronics inside the servo translate the width of the pulse into a position. When the servo is commanded to rotate, the motor is powered until the potentiometer reaches the value corresponding to the commanded position.

James Watt"s steam engine governor is generally considered the first powered feedback system. The windmill fantail is an earlier example of automatic control, but since it does not have an amplifier or gain, it is not usually considered a servomechanism.

The telemotor was invented around 1872 by Andrew Betts Brown, allowing elaborate mechanisms between the control room and the engine to be greatly simplified.power reverse mechanism was a general purpose air or steam-powered servo amplifier for linear motion patented in 1909.

Electrical servomechanisms require a power amplifier. World War II saw the development of electrical fire-control servomechanisms, using an amplidyne as the power amplifier. Vacuum tube amplifiers were used in the UNISERVO tape drive for the UNIVAC I computer. The Royal Navy began experimenting with Remote Power Control (RPC) on HMS Champion in 1928 and began using RPC to control searchlights in the early 1930s. During WW2 RPC was used to control gun mounts and gun directors.

The origin of the word is believed to come from the French "Le Servomoteur" or the slavemotor, first used by J. J. L. Farcot in 1868 to describe hydraulic and steam engines for use in ship steering.

The simplest kind of servos use bang–bang control. More complex control systems use proportional control, PID control, and state space control, which are studied in modern control theory.

type 1 servos: under steady-state conditions they produce a constant value of the output with null error signal, but a constant rate of change of the reference implies a constant error in tracking the reference;

type 2 servos: under steady-state conditions they produce a constant value of the output with null error signal. A constant rate of change of the reference implies a null error in tracking the reference. A constant rate of acceleration of the reference implies a constant error in tracking the reference.
