simrad hydraulic pump in stock

Hydraulic steering systems are now being used in every category of small vessel. In many ways, hydraulic steering is preferable to mechanical steering. Hydraulic systems normally consist of two main components, steering cylinder(s) and a steering wheel pump. The steering wheel pump can be either a plunger pump or a gear pump. Whichever type is installed, steering is achieved by turning the steering wheel in either direction causing oil from the wheel pump to be supplied to the appropriate side of the cylinder. Oil is returned back to the pump via the opposite side of the cylinder.

The linear motion of the cylinder rod is transformed to a rotary motion by the tiller, which turns the rudder shaft and rudder. Check valves (non-return valves) are usually incorporated to prevent the rudder driving the steering wheel pump. If an autopilot is to be included in such a hydraulic steering system, then the oil flow providing the rudder movement must be controlled by electrical signals from the autopilot.

Simrad develops powerful drive units based on long experience from the rough conditions in the North Atlantic Ocean as well as the high humidity and high temperatures in Florida and other tropical areas. They drive the rudder with precision and endurance through the toughest conditions and on the longest crossings. Several models are available to fit the various types and sizes of boat and steering systems. The Simrad range of reversible hydraulic pumps is easily adaptable to the boat"s hydraulic hand steering system and allows the autopilot to have smooth and precise control.ModelVOLTSAutopilot ComputerRAM CapacityFlow Rate At 10 barMax Pressure barPWR ConsumptionBoat Length

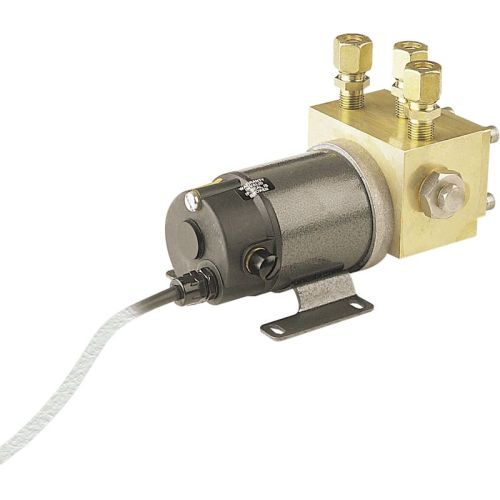

This item is brand-new, factory sealed.PUMP-2, 12V DC, MFG# 000-15444-01, reversible hydraulic gear pump. Flow rate: 800 cc (49 cu.in) / min., for cylinder displacement of 80 cc - 250 cc (4.9 - 15.2 cu.in) (NAC-2 / AC12 required).

Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).

Simrad PUMP-1 MKII Hydraulic Pump — 0.8L 12vModel: 000-11770-002Reversible hydraulic pump, compatible with SeaStar manual helm pumps up to 14ci. Includes 3 x ORB-5 to 9/16 UNF fittings.What"s in the Box:

PUMP-5: 24V DC: Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).

Save $399 when you buy the Simrad PUMP-5 MKII 24v Reversible Hydraulic Pump 17.7 - 58.5cui for only $1099 from NVN Marine! Same day shipping before 3pm.

CatégoriesAccessoriesAccessories, Marine Navigation & InstrumentsAccessories, Marine Plumbing & VentilationAccessories, Marine SafetyAccessories, OutdoorAccessories, SailingAdhesive/SealantsAmplifiersAnchor RollersAnchoringAnchoring & DockingAnchoring & Docking, CleatsAnchoring AccessoriesAnchorsAnodesAntennasApparelAudio/VideoAutomotive/RVAutomotive/RV, FansAutomotive/RV, Jacks & DolliesAutomotive/RV, Light BarsAutomotive/RV, Satellite ReceiversAutopilotsBait ContainersBait ManagementBait Management, CampingBait Management, LightingBait Management, Marine Plumbing & VentilationBait Worms, Dough Bait HooksBaitholder, Catfish, OffsetBaskets, TrapsBattery ChargersBattery IsolatorsBattery ManagementBattery Management, Boat OutfittingBeads, Rattles, SpinnersBearings & HubsBilge PumpsBimini Top FittingsBlade BaitsBlowers & HeatersBoat AccessoriesBoat OutfittingBoat Outfitting, CleaningBoat Outfitting, HatchesBoat Outfitting, Shore PowerBoat Outfitting, Steering SystemsBoat Outfitting, Tie-DownsBoat Outfitting, Water Flushing SystemsBoating electronicsBow & Stern EyesBow ThrustersBraidedBrake ControllersBrake Controllers, TraileringBumpers/GuardsBuoysBusbars, Connectors & InsulatorsBuzz BaitsCameras & Night VisionCampingCamping And OutdoorCamping, Deck / GalleyCarlisle, CricketCartographyCastingCB Radios, CommunicationChocksCircle, Kahle, OctopusCleaningCleatsCommunicationCommunicationsCompassesCompasses, OutdoorCrappie BaitsCulling ToolsDeckDeck / GalleyDeck / Galley, Hunting & FishingDeck FillsDeck PlatesDisplay MountsDiving CrankbaitsDocking & anchoring productsDocking AccessoriesDocking Accessories, LightingDome/Down LightsDouble BladeDownrigger AccessoriesDownriggersDrop ShotDyes, PaintElectricalElectrical equipmentElectrical PanelsElectrical, Shore PowerElectrical, Solar PanelsEngine ControlsEngine Controls, Marine Navigation & InstrumentsEngine MountsEntertainmentEPIRBsFender AccessoriesFendersFinesseeFish BaitFishfinder OnlyFishfindersFishingFishing AccessoriesFishing Accessories, LightingFishing Accessories, PaddlesportsFishing LineFishing ReelsFishing RodsFittingsFittings, Marine HardwareFittings, Marine Plumbing & VentilationFlashlights, OutdoorFlippingFloatsFLOATS | BOBBERSFlood/Spreader LightsFluorocarbonFly FishingFootballFrogsFume DetectorsFuse Blocks & FusesGalleyGas SpringsGeneralGPS - AccessoriesGPS - Fishfinder CombosGrab HandlesGuide-OnsHailer HornsHard BaitsHatchesHeaters/DehumidifiersHingesHooksHooks & ClampsHornsHot Water HeatersHumminbirdHuntingHunting & FishingHunting & Fishing, ToolsIce AugersIce FlashersInstrumentsInterior / Courtesy LightJack PlatesJacks & DolliesJig HeadsJig HooksJigsLaddersLatchesLife Vests, Marine SafetyLight BarsLightingLightsLights & WiringLipless CrankbaitsLivewell PumpsLure CustomizationMaps, SunscreenMarineMarine And Water SportsMarine HardwareMarine Navigation & EquipmentMarine Navigation & InstrumentsMarine Plumbing & VentilationMarine Plumbing & Ventilation, Marine SanitationMarine Plumbing & Ventilation, Transfer PumpsMarine SafetyMarine Safety, Personal Locator BeaconsMarine Safety, Switches & AccessoriesMarine SanitationMeters & MonitoringMinnows, ShadMonitoring SystemMonofilamentMooring WhipsMotorsNail WeightsNavigationNavigation LightsNavigation Lights, PaddlesportsNED HOOKSNetwork Cables & ModulesNighttime BladesNMEA Cables & SensorsOutdoorOutdoor, Tackle StorageOutrigger AccessoriesOutriggersOver-The-Air TV AntennasPaddle TailPaddlesPaddlesportsPaddlesports, Personal Flotation DevicesPaddlesports, Rod HoldersPersonal Flotation DevicesPropellerRadarRadarsRail FittingsRainwearRam Mount StoreReelsRod & Reel StorageRod Holder AccessoriesRod HoldersRod Reel CombosRollers & BracketsRub RailSafetySafety LightsSailingSanitationSatellite TV AntennasSeatingShakeyShakyShallow CrankbaitsShorepowerSinkersSoft BaitsSoft BodySOFT PLASTICSSolar PanelsSpeakersSpinner BaitsSpinnerbaitsSpoonsSteeringSteering SystemsSteering WheelsStereosStorageSubwoofersSwimbait HeadsSwimbait, TechniqueSwimbaitsSwitches & AccessoriesSwivelsTackle StorageTeardrop, TorpedoTerminal TackleTie-DownsToolsTopwaterTrailerTrailer WinchesTrailer, TrebleTraileringTransducer AccessoriesTransducersTransfer PumpsTransfer Pumps, WinterizingTrim Tab AccessoriesTrim TabsTrolling Motor AccessoriesTrolling MotorsUmbrella RigsUnderspinUnderwater LightingUtility BoxesVentsVHF - Fixed MountVHF - HandheldWackyWashdown / Pressure PumpsWaterproof Bags & CasesWatersportsWinch Straps & CablesWindlass AccessoriesWindlassesWinterizingWire ManagementWorm

The PUMP-5 is a reversible hydraulic gear pump for boats up to 70ft. It works in conjunction with the NAC-3 / AC42 autopilot computers as part of an autopilot system.
