skf hydraulic pump 729124 factory

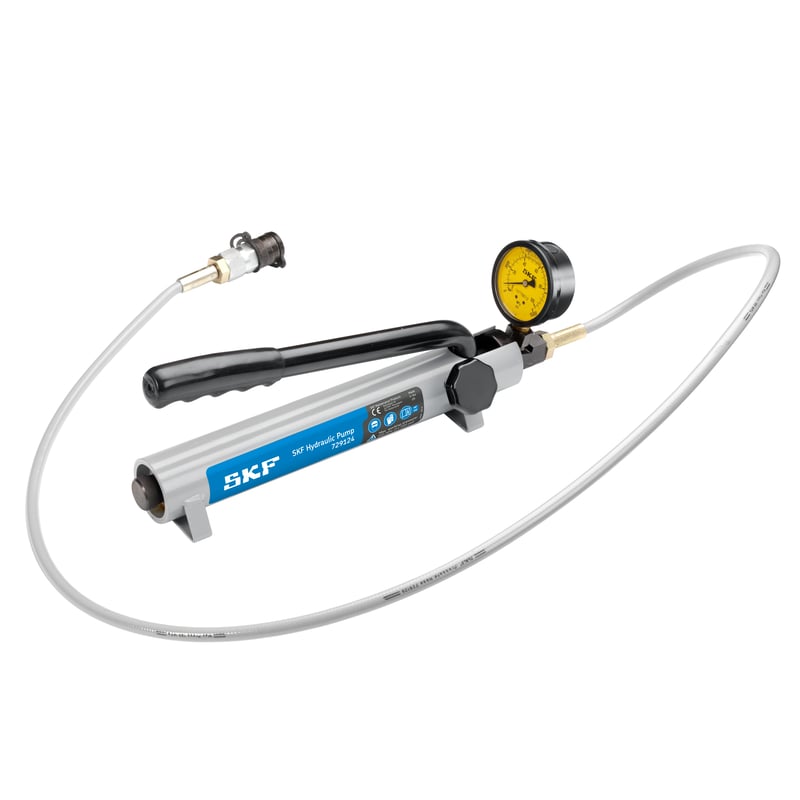

The 729124 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 54E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14 500 psi) is required. The pump is supplied with 1 500 mm (59 in.) pressure hose, quick connect coupling and mating nipple and pressure gauge. The pump is filled with SKF Mounting fluid LHMF 300 and is supplied with an extra litre of fluid.

729124 DUSKF Hydraulic Pump 729124 DUThe SKF 729124 is mainly intended for SKF Hydraulic Nuts (? HMV 54E) to mount bearings or components where a maximum pressure of 100 MPa (14,500 psi) is required. Supplied with a digital pressure to enable the SKF Drive-up Method to be used for mounting rolling elment bearings. The 729124 can also be used for oil injection applications for removing rolling element bearings.Oil container capacity 250 cm³ (15 in³)

729124SKF Hydraulic Pump 729124The SKF 729124 is mainly intended for SKF Hydraulic Nuts (smaller than HMV 55E) to mount bearings or components where a maximum pressure of 100 MPa (14,500 psi) is required. The 729124 can also be used for oil injection applications for removing rolling element bearings.Oil container capacity 250 cm³ (15 in³)

The 729124 pumpis suitable for use with hydraulic nuts (smaller than or equal to HMV 54E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14,500 psi) is required. The pump is supplied with 1 500 mm (59 in) pressure hose, quick connect coupling and mating nipple and pressure gauge. The pump is filled with SKF mounting fluid LHMF 300 and is supplied with an extra litre of fluid. For applications where space does not permit the use of a quick connect coupling and nipple, such as AOH sleeves, a special pump design is available (729124 A).

This is Hydraulic Hand Pump 250cm3 100 MPa manufactured by SKF. The manufacturer part number is 729124. With 0.5cm³ of displacement per stroke 1st stage . It features 100 mpa maximum operating pressure. The typical product"s weight is 3.5kg. With a 250cm³ of usable oil capacity . It allows to operate using hand operated.

ApplicationThe pump is suitable for SKF hydraulicnuts ( HMV 54), and for mounting ordismounting bearings or componentswith an interference fit applying theSKF oil injection method, where amaximum pressure of 100 MPa(14,500 psi) is required.

DescriptionThe pump 729124 is supplied with a1.500 mm (4,9 ft) pressure hose729126, quick connection coupling729831 A, quick connection nipple729832 A and transport box. The pumpis filled with SKF Mounting Fluid LHMF300 (viscosity 300 mm/s at 20 C(1,400 SUS at 68 F).

DescriptionNipple for pressure gaugePump bodyTransport boxRepair kitRelease valve and spindleOil container tubeQuick connection coupling 1/4" GQuick connection nipple 1/4" GPressure hose 1,5 m (4.9 ft)Pressure gauge

Special executions729124 AFor applications in which space does notpermit the use of a quick connectioncoupling and nipple, e.g. AOH sleeves, aspecial pump design, designation729124 A, is available consisting of:

nipple for pressuregauge729124-1pump body729124-2transport box1077587/2pressure gaugehigh pressure pipe withspecial connection1020612 A/500nipple 729107 pluswasher729108

729124 SRBFor use with the Drive-up method the729124 is also available with the highprecision gauge TMJG 100D.The suitable size range for the729124 SRB are nuts up andincludingHMV 54E.The complete pump kit consists of:729108729124-1TMJG 100D729126729831 A729832 ALHMF 300/1728245/3

nipple for pressure gaugePump bodyPrecision digital gaugeHigh pressure hose; 1,5 mQuick connection couplingQuick connection nippleMounting fluid, 1 litre canTransport box

SKF 729124 Hydraulic Pump 100 MPa | TEquipmentOn Sale SKF 729124. ✅ Engineers on staff. ✅ FAST quotes ✅ We accept POsSKF Hydraulic pump 729124 - Reliability Directuse with hydraulic nuts (smaller than or equal to HMV 54E) and mounting and dismounting bearings or components

SKF Hydraulic pump 729124 The 729124 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 54E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14 500 psi) is required. pressure hose, quick connect coupling and mating nipple and pressure SKF 729124 DU Hydraulic Pump Drive Up Method KitOn Sale SKF 729124 DU. ✅ Engineers on staff. ✅ FAST quotes ✅ We accept POsSKF 729124 Hydraulic Pump - SKF 729124 Hydraulic PumpHydraulic Pump 100 MPa - (14 500 psi)The 729124 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 54E) SKF 729124 A Hydraulic Pump: Home Buy SKF 729124 A Hydraulic Pump: Input Shafts - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
