torcup hydraulic pump manufacturer

With a worldwide network of representatives, distributors, calibration centers and staff, TorcUP provides technical support around the globe. We are available on site, on the phone or via Skype and email to give you unparalleled support for your technical needs.

SINCE 1996 TORCUP HAS GROWN TO BECOME THE INDUSTRY"S MOST TRUSTED HYDRAULIC AND PNEUMATIC TORQUE WRENCH SUPPLIER. INDUSTRIAL TORQUE TOOLS THAT ARE MADE IN THE USA TO MEET THE CRITICAL BOLTING REQUIREMENTS OF CUSTOMERS AROUND THE WORLD. WE ARE NOT JUST A SIMPLE BOLTING TOOL COMPANY THAT TIGHTENS AND LOOSENS THREADED FASTENERS. WE ARE A SOLUTIONS PARTNER TO HEAVY INDUSTRY ON EVERY CONTINENT.

Genuine TorcUP DesignThe AP series is there for you when electricity is not. In explosive environments or on applications when air is more readily available than electricity, the AP series pumps are another example of TorcUP’s attention to the needs of our customers. Capable of running up to four tools the AP series brings safety to your application.

Each pump comes standard with one set of 15" twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating. Longer lengths of hoses available to accommodate various needs.

The pump can be ordered with an installed four port manifold for operating four tools concurrently. This version comes complete with a 1.5 gallon reservoir.

Each pump comes standard with one set of 15" twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

The EP series hydraulic torque wrench pump is manufactured to withstand harsh environments and heavy duty applications. Adjust the pressure to the desired PSI/Bar to achieve proper torque output each and every time. Whether running one tool or four, the EP series pumps are the power that guarantees the job will get done.

TorcUp designs and manufactures the most advanced industrial bolting tools. They have hydraulic wrenches, pneumatic wrenches, electric wrenches, hydraulic pumps and bolt tensioners.

“Since 1996 TorcUP has grown to become the Industry’s Most Trusted Hydraulic and Pneumatic Torque Wrench Supplier. Industrial torque tools that are Made in the USA to meet the critical bolting requirements of customers around the world. We are not just a simple bolting tool company that tightens and loosens threaded fasteners.

THE EP SERIES HYDRAULIC TORQUE WRENCH PUMP IS MANUFACTURED TO WITHSTAND HARSH ENVIRONMENTS AND HEAVY DUTY APPLICATIONS. ADJUSTTHEPRESSURE J TO THE DESIRED PSI/BAR TO ACHIEVE PROPER TORQUE OUTPUT EACH AND EVERY TIME. WHETHER RUNNING ONE TOOL OR FOUR. THE EP SERIES PUMPS ARE THE POWER THAT GUARANTEES THE JOB WILL GET DONE. All dimensions are the same for 230v models EP500 EP1000 EP1000-Q Technical Data Reservoir Capacity (gal/litre) Valve Style Motor Specification Flow Rate @ 75 bar Flow Rate @ 700 bar Weight (lbs/kg) AMPS Single Phase Auto Retract

THE AP SERIES IS THERE FOR YOU WHEN ELECTRICITY IS NOT. IN EXPLOSIVE ENVIRONMENTS OR ON APPLICATIONS WHEN AIR IS MORE READILY AVAILABLE THAN ELECTRICITY, THE AP SERIES PUMPS ARE ANOTHER EXAMPLE OF |... f TORCUP"S ATTENTION TO THE NEEDS OF OUR Ml Mm CUSTOMERS. CAPABLE OF RUNNING UP TO 1l FOUR TOOLS SIMULTANEOUSLY, THE AP SERIES I *, j -BRINGS SAFETY TO YOUR APPLICATION. I 1*. Dimensions A (in/mm) B (in/mm) C (in/mm) D (in/mm) Technical Data Reservoir Capacity (gal/litre) Valve Style Motor Specification Flow Rate Weight (lbs/kg) Auto Retract

hydraulic torque wrench pump accessories adapt - TO THE HARSHEST ENVIROMENTS adjust - PRESSURE AS NEEEDED anticipate - JOB-SITE OBSTACLES SHIPPING CASE FOOT SWITCH HEAT EXCHANGER TWIN LINE HYDRAULIC HOSE GAUGE ROLL CAGE OFFSHORE STORAGE CASE Ep/AP Pumps Made In USA Worldwide Headquarters 1025 Conroy Place Easton, PA 18040 USA TOLL FREE: 1-888-TorcUP-1 TELEPHONE: 1-610-250-5800 FAX: 1-610-250-2700 Heavy Duty Hydraulic Torque Wrench Pumps Gauges Calibrated In ISO17025 Laboratory Manufactured With AQ Certified Alloys Genuine TorcUP Design Catalog 2017 TorcUP products are subject to continual...

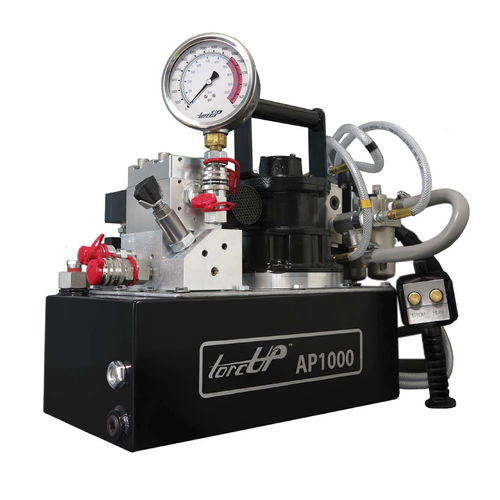

The TorcUP AP series hydraulic torque wrench pumps were designed to be driven by pneumatic means in the harshest and most demanding environments…SAFELY!

In explosive environments or on applications when air is more readily available than electricity, the AP series pumps are another example of TorcUP’s attention to the needs of our customers.

Hydraulic Bolt Tensioning Pump The Principle The New TorcUP air operated pump units are designed and constructed to be failsafe, user friendly, lightweight and compact. They work on a simple but efficient principle, power is magnified through differential piston Part # TP-10000-A275 Maximum Working Pressure = 27,500psi (1895bar) areas. A large pneumatic piston drives a smaller Part # TP-1000-A425 Maximum Working Pressure = 42,500psi (2930bar) hydraulic piston, which provides fluid flow at high pressure. Pump assemblies can be supplied in many combinations, a choice of air motors and pressure gauges are available to ensure that the correct assembly is specified to meet the Bolt Tensioning requirements. Part Identifier 1 - Stainless steel frame 2 - Oil outlet, female quick release coupling 3 - Pressure release valve 4 - On/Off valve 5 - Pump unit 6 - Oil resovoir 7 - Filler cap 8 - Air Inlet 9 - Air pressure gauge 10 -Air regulator 11 - Pressure gauge Why use Air Driven Liquid Pumps ? Hydraulic pressure is held without energy consumption Explosion Proof, requires no electrical power or connections Intrinsically Safe Compact and lightweight Contamination tolerant Outlet stall pressure predetermined by the air drive regulator Ideal for stop start applications under full load Easy to install and operate TorcUP products are subject to continual development and TorcUP reserves the right to make changes in the specification and design of there products without prior notice. All rights reserved. Reproduction in whole or in part without the permission of TorcUP is prohibited. 1025 Conroy Place Easton, PA 18040 USA Telephone: +1 610-250-5800 Fax: +1 610-250-2700 e-mail: sales@torcup.com

The EP series hydraulic torque wrench pumps were designed with on-site continuous duty cycling reliability in mind. Full range adjustability up to 10,000 PSI / 700 Bar.

The AP series hydraulic torque wrench pumps were designed to be driven by pneumatic means in the harshest and most demanding environments… safely! Full range adjustability to 10,000 PSI / 700 Bar.

TorcUP is more than a torque tool company … we are risk takers, engineers, marketers, innovators, driven by our love of empowering our customers. We are a dynamic collection of skilled individuals that create superior industrial bolting products. Partnering with the best material suppliers, machining experts and sales channels, TorcUP combine industry leading technology with world class sales feedback to provide our customers the ultimate in durability, application fitment and most of all, safety. Born from the desire to be DIFFERENT, TorcUP will always deliver pneumatic sockets and torque wrenches without compromise!

TorcUP has a long history of breaking the mold. In 1996, TorcUP introduced the first square drive tool with reaction arm splines inside of the housing and a low clearance tool with a “peanut shaped” piston. Against the grain of the hydraulic wrench industry, TorcUP challenged “the norm” and impressed those that mattered … customers. At that moment our future was solidified and we knew that from that point forward our innovations always required being “DIFFERENT”. All variances had to be for the benefit of the application and the customer … whether they be in tool simplicity or tool appearance … IT HAS TO BE DIFFERENT!!

Of major importance is that TorcUP products are proudly Made In The USA. YES, TorcUP is an American company dedicated to American design, engineering and manufacturing.With TorcUP tools, there are no smoke and mirrors. You simply get the best torque and tension tools that you will ever own.

December 30, 2008 - Easton, PA. - The best just got even better! TorcUP realizes that sometimes you need just a little more. The Ultra UT Series Hydraulic Torque Wrench is designed to deliver more when you need it the most! The UT series combines all of the beneficial features of the TU, from the Multi-Axis Swivels to the Laser Engraved Torque Chart, along with all internal mechanical moving components being machined from VASCOMAX! Unlike any other brand of Hydraulic Torque Wrench in the world, TorcUP has created...
