ultra high pressure hydraulic pump in stock

Air operated hydraulic pumps provide the high-pressure hydraulic oil to pressurize hydraulic stud tensioners and hydraulic nuts. The pressure gauges on the hydraulic pumps are stainless stell and are glycerin filled. The pressure pumps have also been fully calibrated and come with a Calibration Certificate.

The MigCraft Ultra High Pressure Air Hydraulic Pump is a top quality product that provides the high-pressure hydraulic oil needed to pressurize hydraulic stud tensioners and hydraulic nuts. The pressure gauges on the hydraulic pumps are made of stainless steel and are filled with glycerin. The pressure pumps have also been fully calibrated.

This MigCraft Ultra High Pressure Air Hydraulic Pump gets its power from compressed air in order to achieve the linear output of ultra high pressure. It is easy, safe and reliable in operation.

Distributor of standard & custom pumps including constant, high & ultra high pressure triplex pumps. Types of pumps include sump, centrifugal, condensate, dosing, effluent, fire, roof tank fill, sewerage grinder, vacuum, vertical suspended sewage, submersible, vertical turbine & wastewater pumps. Pumps are available in caste iron, bronze, stainless steel, plastic & fiberglass materials & in different sizes, styles & specifications. Services include consulting & designing, field surveying, start-up & technical assistance, infrared & laser alignment, vibration analysis, systems integration, trouble shooting & emergency & tailored repairs. Markets served include hospitals, pharmaceutical labs, municipalities, government, military, complexes, schools, airports & industrial.

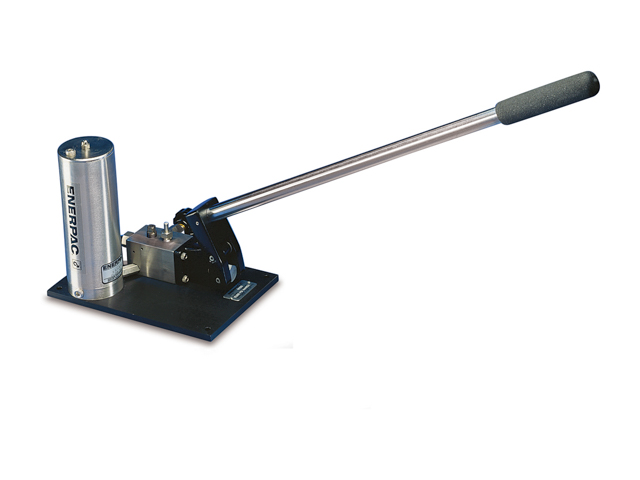

Enerpac’s 11-100 (10,000 psi) and 11-400 (40,000 psi) static test pumps are a great choice for an application where unique fluids are required.  With a wide range of stainless steel valves, fittings, ultra high pressure tubing and high pressure test quality gauges, Buffalo Hydraulic can offer a complete system to use in your static testing application with approved alcohols, distilled water, silicones and petroleum based oils.

Enerpac ultra-high-pressure, hydraulic hand pumps are offered as single-stage or 2 stage manual pumps that can handle up to 40,000 psi (2800 bar). Typical industrial applications include lifting, testing, calibration, maintenance, and repair.

The P2282 model provides two speed operation to reduce the number of handle strokes and is lighter than steel equivalents. The two-speed operation requires up to 78% fewer handle strokes than single-speed hydraulic hand pumps, and the handle locks into place for secure transport.

1600 3000 4000 bar hand pumps – very high pressure hydraulic hand pumps produced in light aluminum alloy of aeronautical derivation to reduce as much as possible the weight. Available in 3 versions with maximum operating pressure:

Equipped with an ergonomic bypass hand wheel in techno polymer for controlled pressure relief, with integrated pressure gauge connection that allows direct mounting of the measuring instrument with 45 ° inclination for a correct reading and lever locking system for easy and better portability. Oil filler cap with integrated breather. Sturdy feet with holes for attachment to machinery or structures.

Design studied to have high performances maintaining an optimal effort on the lever, a reduced weight and an excellent ergonomics. Robust hand pumps – heavy duty – with long maintenance intervals. Surface treatments to guarantee total reliability in the most difficult environments and maximum durability.

Tank capacity from 1,6 to 2 liters. Possibility of mounting manometric sockets, various types of quick couplings, high pressure flexible hoses. For a more accurate reading, the digital pressure gauge supplied with quick couplers is also available. The hand pump can be calibrated to different pressures upon customer request.

Hydraulic mineral oil operating fluid, models available on request with different fluids such as: water, glycol, glycerin, phosphoric esters. Custom made versions available for extreme operating temperatures.

Possibility to design and produce special 1600 3000 4000 bar hand pumps on request, with flow rates, performance and dedicated features. Available in stainless steel, with special fire painted colors and layouts designed and manufactured to customer specifications.

Thanks to the radial configuration of its small piston pump elements, the radial piston pump is suitable for generating pressures of up to 700 bar. The elements are arranged in multiple rings, which enables the pump to generate higher flow rates with lower pulsation.

The type-LP pumps are valve-controlled, alternating plunger pumps based on the principle of a pneumatic-hydraulic pressure amplifier. Depending on the transmission ratio (surface ratio – hydraulic piston : pneumatic piston), they can attain hydraulic pressures of up to 630 bar at an air pressure of 6 bar, for example.

If you want to combine speed with powerful movements (rapid traverse – creeping), a compact, dual-stage system is the right choice for your application. A gear pump feeds the system with a high delivery flow at low pressure, and a radial piston pump with high pressure but a low delivery flow. The two pumps and flanged directly onto one another to form a compact unit.

The pump elements form the basis of the radial piston pump. When working in extremely tight spaces, they can also be installed separately. This allows the user to build almost any form of high-pressure system imaginable.

The double pump element type DMPE integrates both a low-pressure and a high-pressure piston. As soon as the low-pressure limit is reached, an in-built valve depressurises the low-pressure piston. Multistage pumps which can be adapted to a variety of demands can be designed by the user.

Many directional valves for high-pressure applications are designed as seated valves. These are zero-leakage and completely resistant to fluid contamination. The HAWE product range also includes other types of valve that allow you to safeguard or regulate the system pressure.

The valve bank type VB consists of several directional seated valves, connected in parallel. As a ball valve, it is tightly sealed with zero leakage in the closed state. 2/2, 3/2, 4/2, 3/3 and 4/3 directional seated valves can be provided. The valve bank can be fitted directly onto hydraulic power packs with connection blocks.

This is a zero-leakage, cone-seated valve. 2/2, 3/2, 4/2 and 4/3 way functions can be provided. Equipped with the NG6 (Cetop 3) standard connection pattern, the NBVP allows operating pressures of up to 400 bar. Additional options such as position monitoring and a 12 W solenoid are also available.

The BVP17-type directional seated valve can be operated as a 2/2, 3/2, 4/2 or 4/3-way valve at operating pressures of up to 700 bar. Direct actuation options include electro-magnetic, pneumatic and manual (hand lever).

Pressure-limiting valves reliably protect the hydraulic system from being subjected to excessive system pressure. The MV type comes in a wide range of designs and pressures of up to 1000 bar for the high-pressure range.

This valve can be actuated using electric proportional control. It is used for pressure limitation, and also to limit the load pressure on the actuators in the system. It is available as a manifold mounting and as a piping insert valve.

The RHC-type check valve is available as an insert valve in 6 different sizes. Thanks to its range of pilot ratios and optional hydraulic release, it can be used in similar applications to load-holding valves.

The KA-type compact hydraulic power pack is designed for intermittent operation. Its housing contains a tank, an oil-immersed motor, and a high-pressure or dual-stage pump. Valve banks of types BA and VB can be mounted directly on it to form an incredibly compact system solution.

The compact hydraulic power pack type HKL enables you to work in both intermittent and continuous operation. Here too, it is possible to mount valve banks of types BA and VB directly on the power pack. This type of power pack is used primarily for hydraulic tools.

For applications with more demanding flow rate requirements, the standard power pack type FXU is the perfect choice. Thanks to its simple modular configuration, it is available with many options as standard, including high-pressure functions.

HAWE Hydraulik’s Engineering and Installation team will help you with any problem, from application-specific manifolds to entire systems. We have already produced countless successful projects, including in the high-pressure range. Click here to find out more about SYSTEC solutions.
