voith hydraulic pump for sale

Voith pumps offer high volumetric efficiency and provide the ideal solution for variable speed drives while offering overall efficiency improvements through reducing ma­chine or system power consumption.

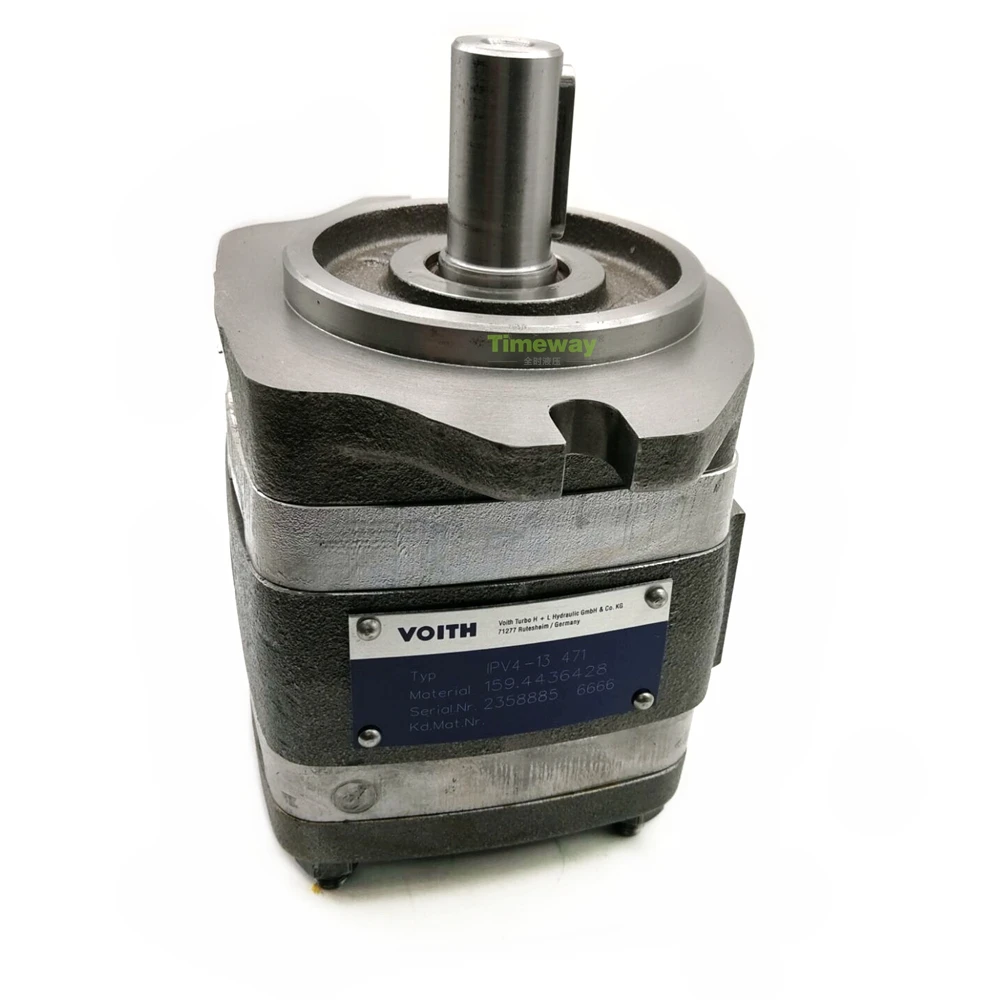

The range of internal gear pumps comprises: IPS, IPVA, IPVAP, IPCA, IPCAP, IPC, IPVS, IPH and IPV series. They are well-suited for any application in the low, medium, and high-pressure range. The pumps are available as: single pumps, pump combinations (multi-flow pumps, multi-circuit pumps), motor pump units, variable speed pumps and servo pumps.

Please contact us for further technical details and configuration options or if you cannot see the Voith hydraulic pumps that you need listed – we’ll be delighted to help!

For hydraulic systems that place high demands on control engineering, servo pumps are the perfect solution. The basic version of these pump systems also consists of three main components:Servo inverter

Servo pumps control the pressure or the volume flow. They precisely convert electrical energy into the hydraulic energy that is currently needed in the system. The classic use of valves for control can be either completely or partially omitted. This considerably simplifies every hydraulic system.

Voith Turbo H + L Hydraulic (VTHL) is a world-class manufacturer of innovative components and systems of fluid-technical drive and control engineering. Voith systems are characterized by:

Energy-saving – through internal gear pumps with high efficiencies, low and high-pressure systems with automatic change-over and accumulator charging technology

Progressive Power & Control sells internal gear pumps, high pressure gear pumps, low-viscosity fluid pumps, multiple flow pumps from Voith Turbo. Voith Turbo purchased H+L Hydraulik GmbH & Co. KG formerly known as Hartmann+Lämmle GmbH Co. KG, enhancing the Voith hydraulic component offerings with the VTHL (or VT H+L) hydraulics division to serve mobile hydraulics and industrial hydraulic customers.

Voith pumps are also used in many manufactured systems. Rather than pay the "upcharge" from the manufacturer, we can frequently provide you with the exact Voith replacement component you need for your equipment.

Voith internal gear pumps allow you to save space in your machine. The high rates of efficiency, thanks to gap compensation, allow efficient operation, and the optimized pressure progressions ensure low pump flow and pressure pulsations in your hydraulic system. This, combined with a compact force guide inside the Voith internal gear pump, reduces noise emissions so you can more easily meet the ever tightening workplace regulations on sound output.

Both the high-pressure and medium-pressure Voith IP pumps share similar design features, including radial compensation, axial compensation, internal gearing and plain bearings which ensure a smooth flow with minimal pulsation. IP pumps can be combined to create systems with multiple flows.

Internal gear rotation draws hydraulic oil or other pressure fluid into the area between the pinion gear and the internal gear. Radially, the gear chambers are closed by the gear teeth meshing. Pressure fluid is displaced when the tooth heads enter the gaps between gear teeth. The axial plates seal the pressure chamber with the minimal possible gap, reducing volume loss and increasing efficiency.

Voith IP pumps of the same or different sizes can be combined to form multiple-flow pumps. All sizes of Voith multi-flow pumps are available as two or three-flow pumps, and as four-flow pumps by custom order.

Directional control fast pilot valves make switching times possible, over 50% faster than direct-controlled valves. Switching time adjustment, stroke limiter and monitoring are available as options. Voith Turbo Hydraulics offers special equipment with standard directional control valves. Due to the compact building design with standing magnet (double solenoid coil with 4/3 valves) the valves can be integrated even in the smallest fitting spaces.

Voith Turbo hydraulic flow control valves are pressure compensated in the millisecond range, and changes in viscosity do not influence the flow rate.

Direct-controlled Voith Turbo pressure control valves are constructed in seat or piston design. The pressure control valve cartridges can be built directly into control blocks. Voith accumulator charging valves with constant switching limit and soft switching are particularly suitable for drive systems. Use memory load valves to design the installed drive power for the average need. All pressure control valves can be equipped with a gauge connecting valve.

The combination of structure and intermediate plate devices permits the realization of control units with many functions in a small space. The control paths and thus the oil columns are kept very short, a necessary condition for good dynamic behavior of the hydraulic control.

Pressure relief valves, type DBV, are capable of controlling and limiting the operating pressure and the flow rate in a hydraulic system. Independent of the set maximum operating pressure, the valve can switch to pressure-free circulation hydraulically, electromagnetically or via an external control oil connection.

The pressure relief valves DBV 50/60 switch the flow on and off depending on the pressure (hysteresis normally set to 10% of system pressure). To allow direct attachment to hydraulic pumps, and especially Voith IP pumps, the pressure relief valves are available with SAE flange connections in 4 sizes (10, 16, 25, 32 mm). The installation orientation can be freely selected.

VTHL electro-hydraulic amplifiers are numerically controlled precision drives. They consist of the set value input assembly, follow-up control valve and the actuator, which can be either a cylinder or a hydraulic motor. Actuator and follow-up control valve are linked by mechanical feedback. Electric low-power set value input combined with a hydraulic actuator result in high power density, low energy consumption, and high closed-loop gain. The electronic controls are coordinated with the special requirements of electro-hydraulic amplifiers. Interface modules make interfacing possible to all kinds of machine controls.

Voith Turbo has succeeded in integrating the well-established internal gear pumps, type IPM (medium pressure, up to 175 bar) and type IPV (high pressure, up to 330 bar) in an asynchronous electric motor. With that an electro-hydraulic unit is available which is very compact in design while also ensuring remarkable low noise emissions. Variable flow from fixed displacement pumps, electric motor - pump - aggregate (with frequency inverter)

The EPA/EPAF Voith internal gear pump or pump combinations generate pressure and volume flow. Asynchronous motor to drive the pump. Frequency inverter for controlling the speed of the motor. EPA/EPAF units can be created with all Voith internal gear pumps

The EPAF variable-speed motor pump unit with the internal gear pump which was specially developed for the delivery of low-viscosity media. Due to its renowned high efficiency, the IPME pump type is particularly suited as a delivery pump for the cooling lubricant circuit in machines with internally cooled tools. A pressure-dependent drive speed control allows cooling lubricant to be delivered as and when it is required. Pressures up to 100 bar can be generated.

VTHL hydraulic units guarantee your pressure supply. With Voith"s accumulator charging technique you generate exactly as much hydraulic energy as demanded by the process. The momentary available volume flow, dependent on the selected accumulator size, will be a multiple of the actually installed pump volume capacity.

With a wealth of knowledge & experience with Voith pumps, Tri-State Hydraulics can easily assist in the repair or replacement of any Voith pumps. Voith serves a number of different markets across the globe.

Tri-State Hydraulics carries an inventory of Voith pumps onsite and keeps every product in ready-to-ship condition. Tri-State also fully tests and sets each product to OEM specifications with our proven check system prior to shipping. Also included is Tri-State’s full suite of service including comprehensive reconditioning, full part replacement, expert support and a test facility. Contact us today at (847.439.8987) and we will quickly diagnose and repair your Voith pumps.

A wide variety of voith hydraulic pump options are available to you, such as construction works , energy & mining and manufacturing plant.You can also choose from 1 year, voith hydraulic pump,as well as from provided voith hydraulic pump and whether voith hydraulic pump is united states, south korea, or mexico.

Voith Turbo hydraulicThe use of liquids to transmit force and energy. pumps / internal gear pumps - IPH, IPV, IPC and IPN - also as double pumps, multiple pumps or add-on pumps:

Are you looking for a dual flow or multiple flow pump, or a single internal gear pump by Voith? No problem, contact us and our team will help you as quickly as possible!

- The ring and shaft teeth processing for Voith internal gear pumps are extraordinarily precise thanks to a special production procedure. This keeps the pressure pulsation extremely low, improves the control loop performance in the hydraulic system, and allows your machine or system to function with high precision. The manufactured products are of exceptionally high quality. An additional plus is the low noise emission. This reduces the effort and costs associated with noise abatement. Workplace guidelines can be met in most cases without the need for additional measures.

- Our optimized radial and axial gap compensation reduces volumetric losses over the entire operating pressure range. This helps Voith internal gear pumps achieve excellent volumetric efficiency. This results in better overall efficiency and energy savings during operation. The high volumetric efficiency of Voith"s internal gear pumps makes them ideal for variable speed drives. With variable speed drives, energy cost savings in hydraulic systems can reach 70% and noise emissions can be reduced by up to 25 dB(A).

- Voith internal gear pumps are built to be robust, compact, light, and low-maintenance. They commonly feature a service life of several decades and high availability. Your hydraulic system operates reliably, keeping your maintenance costs low and your maintenance downtimes short.

Voith internal gear pumpsare especially well-suited for any application in the low, medium, and high-pressure range. Voith internal gear pumps are especially well-suited for any application in the low, medium, and high-pressure range.

Overhaul-, maintenance-service on pumps, motors, hydraulic systems for mobile and industrial fields. We supply spare-parts and components of the different brands as Sauer Danfoss, Poclain Hydraulics, Linde, in the main Italian cities as Modena, Brescia, Bologna, Padova, Bergamo, Verona, Torino, Milano, Firenze, Roma, Napoli, Catania, Genova.

Voith Group, founded in 1867, has profound strengths in the fields of energy, oil and gas, paper, raw materials, transportation and public transportation, and is one of the largest family-owned companies in Europe.

IPVS internal gear pumps are specially developed for constant speed drive applications. The performance range is higher than that of IPV pumps, up to a peak pressure of 420 bar and a maximum displacement of 252 cm³ per revolution.

At the A & S industrial parts mall, you can get a wide range of Voith gear pumps, and Voith gear pump parts. Besides, here you can find the most favorable price, various and famous industrial brands, and fast delivery across the US and the world.
