1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.

3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

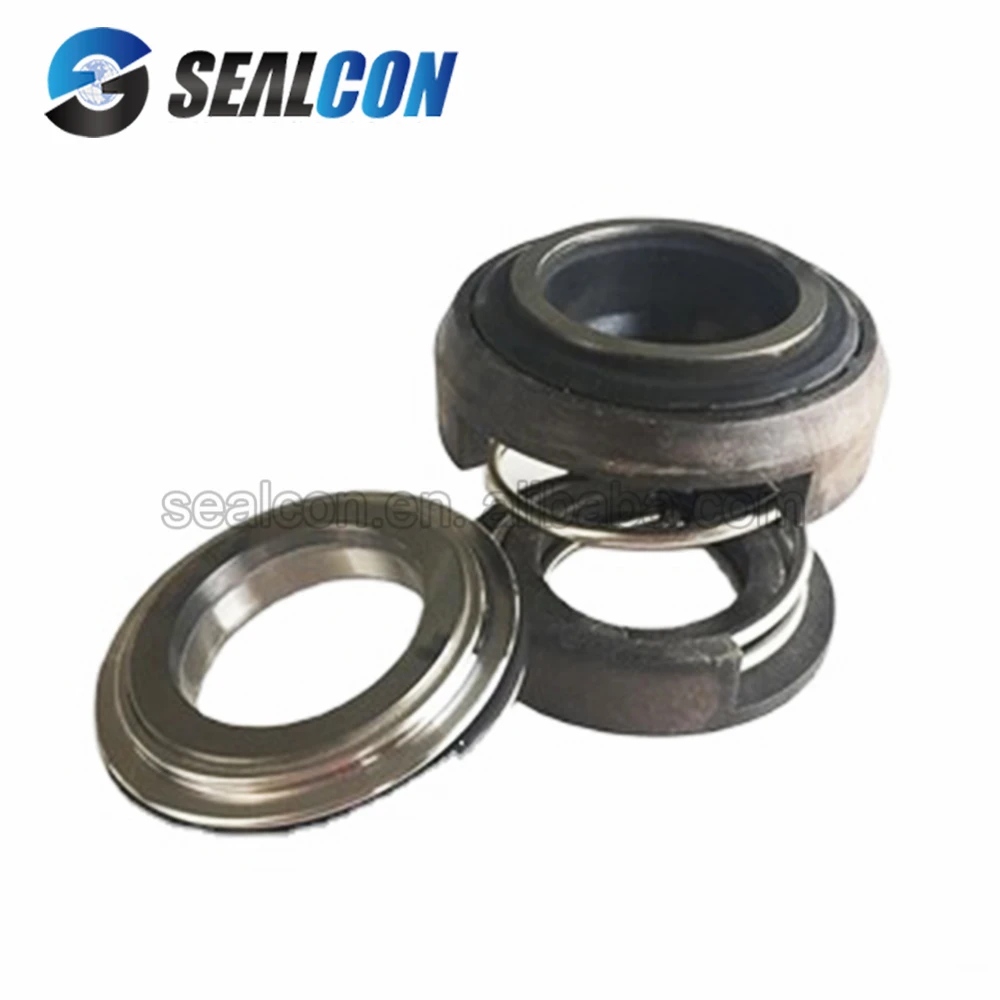

7. Mechanical seals for all types of Calpeda®pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

9. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.

Distributor of process pumps, pumping systems and sealing solutions based in Western Australia, Australia. The company offers yamada aid pumps, blackmer positive displacement pumps, calpeda pumps, chesterton mechanical seals, hydraulic analysis, mobile pump packaged sets and mechanical seal refurbishment and training services.

Seals with shaft size 0, 1, 1.375, 2, 2.25, 15 mm, 16 mm, 17 mm, 22 mm, 23 mm, 26 mm, 27, 30 mm, 35 mm, 37.5, 38 mm, 39 mm, 43 mm, 47, 53, 55 mm, 57, 58, 60 mm, 63, 68, 73, 75 mm, 80 mm, 90 mm, 100 mm, 110, 120, 125, 180, 189, 192, 200, 206, 230, 242, 270, 300, 335, 385

Mechanical seals are available in a variety of sizes, including 0 or 1 or 1.375 or 2 or 2.25 or 15 mm or 16 mm or 17 mm or 22 mm or 23 mm or 26 mm or 27 or 30 mm or 35 mm or 37.5 or 38 mm or 39 mm or 43 mm or 47 or 53 or 55 mm or 57 or 58 or 60 mm or 63 or 68 or 73 or 75 mm or 80 mm or 90 mm or 100 mm or 110 or 120 or 125 or 180 or 189 or 192 or 200 or 206 or 230 or 242 or 270 or 300 or 335 or 385. Selecting the right size mechanical seal is important for optimal performance and reliability. A mechanical seal with the correct shaft size ensures an accurate and secure fit on the pump shaft, distributing pressure correctly and preventing leakage.

Each mechanical seal has a unique type number, including 13, which is used to identify it and to indicate specific features and performance specifications. For example, the type number 13 may indicate material selection, size, pressure and temperature characteristics, or suitability for specific applications.

Initial costs and life cycle costs affect which sealing method is chosen for an application. If a sealing device cannot be considered an investment or will not produce an immediate return, there is little incentive for a change or upgrade.

Environmental stewardship can also play a role in choosing a sealing method. States and provinces have instituted heavy mandates that strictly control water consumption and effluent discharge. In some industries, water controls the environment in which the sealing method operates and plays an important part in increasing seal reliability. With the added concern of water reduction mandates, usage fines and the potential negative impact on reliability process industries are faced with doing more with less.

Spending logically upfront, increasing reliability while lowering operational costs are a winning combination achieved with sealing knowledge and Best Available Techniques (BAT).

The BAT approach is based on optimized economics and what makes sense for the user. It is dictated by equipment design, realistic seal life cycles, slurry characteristics and budget. Equipment with less than desirable sealing life cycles and the hard-to-seal equipment should be the area of focus. Sealing knowledge of when to use what technology i.e., mechanical packing or mechanical seals is critical to the BAT process. The sealing approach determined through BAT will optimize upfront costs while meeting expected life cycles.

The old 80/20 rule applies. A small population of the equipment can represent a large portion of the sealing costs associated with sealing bad actors or hard-to-seal equipment in slurry processes.

In the BAT evaluation process, the bad actors associated with a high cost of ownership are identified. This formal approach should include a survey identifying the equipment population, including the bad actors, and the goals to be achieved. BAT is assisted through root cause failure analysis and slurry classification studies. This process can be conducted throughout the plant or with a specific focus, i.e., a bank of pumps.

Dewatering slurries have lower densities. A paper pulp application is a perfect example of slurry, which will collect at low flow, less turbulent areas closest to the seal gland where the sealing device resides. This dewatering effect will insulate sealing device or block the flow of water, thus supporting a dry run condition and generating excess heat.

Most equipment in the slurry industries is large. It can be sealed with reliable, time efficient split sealing solutions that save money, production and labor hours. Split sealing can be economically justifiable when all life cycle costs are considered.

Today’s advanced sealing technologies include reliable high-performance split mechanical seals combined with environmental controllers, heavy duty, non-split, flushless cartridge seals or high-strength mechanical packing designed specifically for harsh abrasive slurry sealing.

The BAT approach to sealing considers the best sealing technologies, which contain slurry features inherent in their design increasing reliability, but also allows the reduction or elimination of flush water.

A mechanical seal design that places the springs entirely outside the seal will deliver higher performance levels. In slurry applications the slurry will migrate or precipitate across the seal faces. This is an uncontrollable event. Springs located entirely outside the seal (visible springs) will avoid the fouling that takes place internally and continue to deliver the closing force required to keep the faces tracking properly.

Micropolishing the dynamic o-ring surface is a process that improves the surface finish that the o-ring has to travel. The surface is manufactured to a mirror-like finish to reduce the friction between the o-ring and the dynamic sealing surface. Proper seal face tracking will continue over the life of the seal. Non-settling and dewatering type applications can insulate seal faces and increase the heat buildup. As a result, o-ring properties can be affected, limiting their sealing performance and introducing a problem with seal face hang-up.

In heavy slurry applications seal faces must be protected from possible impact of large solids, which can be as hard as rock. Seal face encapsulated in metal shrouds for protection is desirable.

Seal fouling on the both the process and atmospheric sides of the sea will occur. On the process side there are areas of low flow or low turbulence. It is here where the slurry can dewater and/or insulate the seal from the cooling effects of the process. As previously mentioned, fouling on the atmospheric side of the seal is an uncontrollable event.

Mechanical packing designed for challenging abrasive slurry environments can meet expected life cycles. Historically, the perception has been that packing required flush water for cooling, lubrication and cleaning for reliable operation in slurry services. High tensile strength materials are used to withstand abrasion but often exhibit less than ideal heat generation, thermal conductivity and chemical resistance characteristics. Users typically use high flush water rates to minimize the negative impact of these characteristics of slurry packing. High performance slurry pump packing can reduce flush water use and increase reliability. Pump packing constructed with graphite and carbon has proven successful in difficult slurry services. High tensile strength carbon yarns provide the reinforcement necessary to resist wear and abrasion in slurries while graphite provides sealing and lubrication. The carbon/graphite construction delivers low heat generation with high thermal conductivity, requiring less water for cooling. This unique construction of yarns yields a packing that is easily removable during repack, resulting in reduced downtime. The ability to be used in a wide array of equipment, using advanced materials and construction practices, packing can lower flush water requirements and deliver greater life cycles. Packing can represent a reliable low cost alternative in the slurry markets.

Environmental controllers are economical additions to mechanical seals and mechanical packing. Environmental controller bushings are designed to extend the life of sealing devices. They perform the function of expelling solids from a seal chamber using a spiral groove. As a result, less flush water is required to support a sealing method. In some instances, seal life cycles can be significantly increased and flush water completely eliminated. A number of environmental controller variations are available for the various sealing methods mentioned.

Dual seals are often used to increase seal life cycles in slurry applications. They can be a relatively high expense on upfront acquisition and utility cost. Dual seals offer the ability to pressurize a clean fluid, sometimes called barrier fluid, between two sets of seal faces. This arrangement is described as Plan 53 or Plan 54. Plan 53 uses a seal support tank to supply barrier fluid to the seal; Plan 54 uses an outside source, or flow through arrangement. In both, the pressure is set to a minimum of 15 psig (1 bar g) above the seal chamber pressure. This sealing approach ensures that a clean fluid is forced between the inboard set of seal faces, which would otherwise be the slurry in a single seal installation. Plan 54 can be an area for significant water reduction improvements since the flow through arrangement is associated with wasteful, high water flow rates to drain. Another area for savings is a means to reduce process dilution. Visibility to inboard seal leakage can be achieved with addition of a dual flowmeter. To evaluate the BAT opportunities at a plant, work with a single point supplier that is knowledgeable in all the sealing technologies mentioned. A supplier can deliver BAT, considering all of the following:
